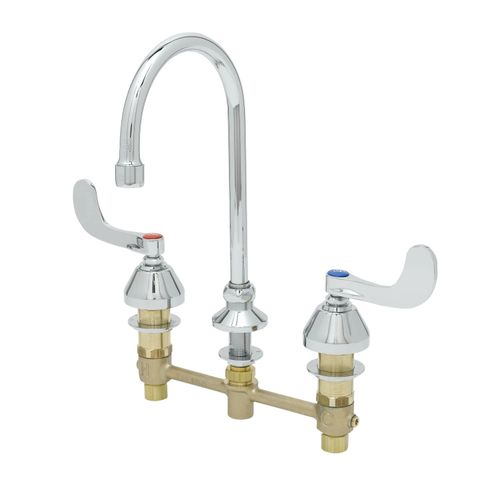

Medical Faucet, 8" Centers, Swivel Gooseneck w/ 1.5 gpm Laminar Device, 4" Wrist Handles (Polished Chrome), B-2866-05-LF15
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$237.55 each
In Stock
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Brass
1 Year Limited Warranty
125 MAX PSI
Deck Mount
IPS / NPT Connection
Polished Chrome
Description
–
8" concealed deck mount mixing faucet with forged brass body, 5 3/4" swivel/rigid gooseneck with 1.5 GPM laminar flow device, compression cartridges with spring checks, 4" wrist action handles, polished chrome plated escutcheons and 1/2" NPT male inlets with coupling nuts. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
- 1.5 GPM laminar flow device, Series 1 (B-0199-29)
- 1/2" NPT male inlets w/ coupling nuts
- 4" wrist action handles w/ color coded indexes
- 5 3/4" swivel/rigid gooseneck
- 8" EasyInstall concealed deck mount mixing faucet w/ forged brass body
- Lock washer provided for rigid application
- Material: Forged brass body, polished chrome plated brass tubular spout and chrome plated metal handles & escutcheon
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
Specs
–
| Valve Type: | Compression |
|---|---|
| Approvals: | ADA / ICC A117.1 NSF/ANSI 61 WaterSense Lead Free ASME A112.18.1 / CSA B125.1 |
| ADA: | Yes |
| Spout Height: | 6.19" |
| Flow Rate (GPM): | 1.5 |
| Max Deck Thickness: | 1.25" |
| Material: | Brass |
| Warranty: | 1 Year Limited |
| Product Type: | Medical Faucet |
| Max Pressure (PSI): | 125 |
| Installation Type: | Deck Mount |
| Connection Type: | IPS / NPT |
| Number of Handles: | 2 |
| Finish: | Polished Chrome |
| Connection Size: | 1/2" |
| Handle Style: | Wrist Blade |
| Min Pressure (PSI): | 20 |
| Application: | Healthcare |
| Drain Type: | No Drain |
| Type: | Manual |
