5101-G3 has been discontinued
Discontinued September 28, 2022
This product was discontinued by the manufacturer.
MANUALS (4)
This item replaces: 5101-G2
Suggested Alternative:
3/4" Geo-Sentry GeoThermal Zone Valve Normally Closed (Threaded)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
2-Way
Threaded Connection
6.1 Cv
3/4"
24V
Normally Closed
Description
–

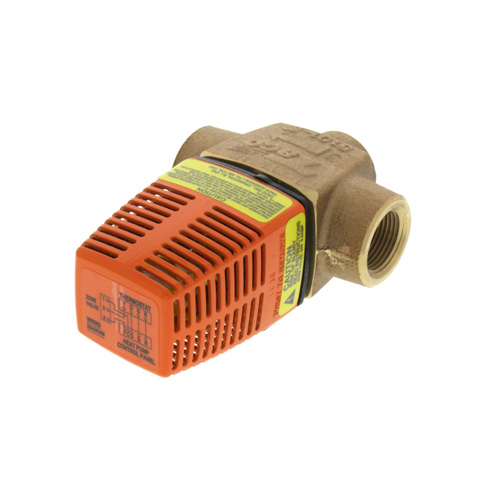

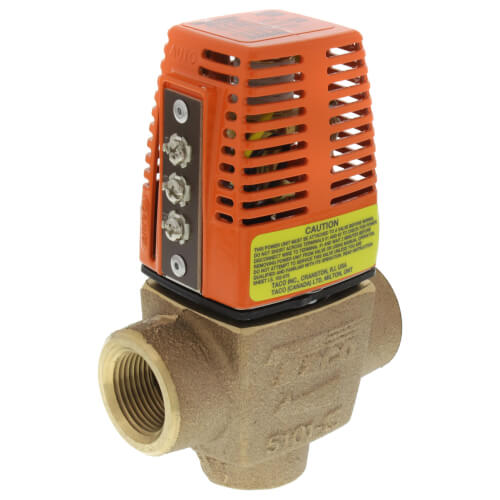

Taco Geothermal Valves are designed for high-head, open-system zone control. The unique end switch design permits control of the heat pump by the valve, allowing cold water into the coil before the heat pump starts.
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 3/4" |
| Connection Type: | Threaded |
| Flow Capacity (Cv): | 6.1 |
| Flow Range (GPM): | 4-1/2-6 GPM |
| Max Flow (GPM): | 6 |
| Min Flow (GPM): | 4.5 |
| Body Pattern: | 2-Way |
| Amperage: | 0.9 |
| Voltage: | 24V |
| Position: | Normally Closed |
| Hertz: | 60 |
| Material: | Bronze |
| Max Temp (F): | 240°F |
| Min Temp (F): | 40°F |
| Temperature Range (F): | 40°F - 240°F |
| Max Pressure (PSI): | 125 |
| Wiring: | 3 Wire Terminal Block |
| Width (Inches): | 3-3/8" |
| Height (Inches): | 5.375" |
| Depth (Inches): | 2" |
| End Switch: | Yes |
