Description

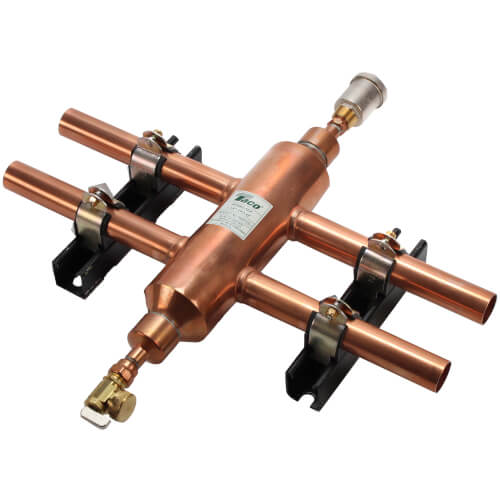

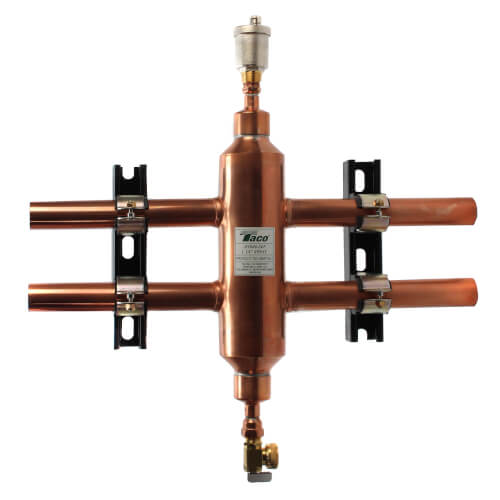

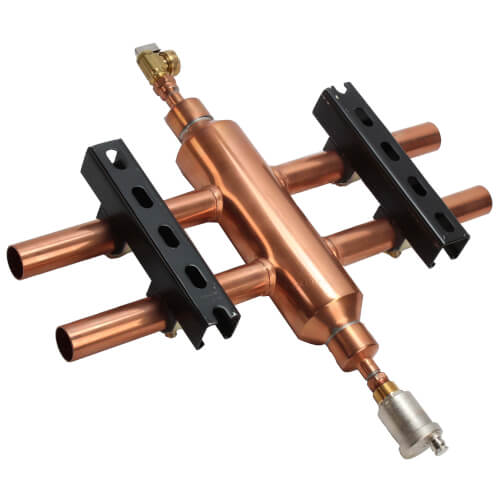

Taco's Hydraulic Separators are compact economical units that allow fast and efficient installation of primary/secondary piping for many different boilers. Installing this unique Hydraulic Separator offers the additional advantages of assisting in the removal of unwanted air and dirt particles, preventing their damaging affects on system components. It is especially suitable for today's smaller boilers that tend to have a much higher flow resistance. There are 3 combinations of flow and temperature possible with Taco's Hydraulic Separator depending on the relationship of the primary and secondary flow rates.

Features:
  • Small space saving design
  • Rugged all copper construction
  • Suitable for use with oxygenated water heating systems
  • Blow down port for sediment removal
  • High quality, industry standard automatic Taco Hy-Vent®
  • Wall mounting brackets
  • Copper body, Brass drain valve body and air vent body
Read more
Manuals (1)
Specs
Type:
Hydraulic Separator
Product Type:
Air Eliminator
Dirt Eliminator
Hydraulic Separator
Material:
Copper
Connection Type:
Sweat
Flow Rate (GPM):
15
Max Pressure (PSI):
350
Max Temp (F):
240°F
Media:
Water or Glycol up to 50%
Size:
1-1/4"
Number of Outlets:
4
Supply Size:
1-1/4"
×
