$526.97 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
Size:
1/2"
Body Pattern:
2-Way
Connection Type:
C x C
Features:
Setpoint
MANUALS (4)
This item replaces: I050C2S-1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
C x C Connection
1/2"
4.9 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–

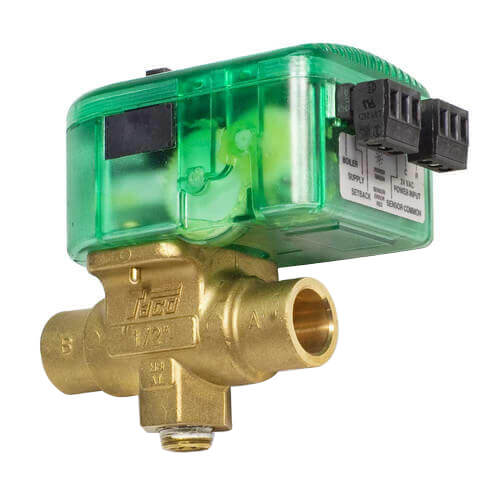

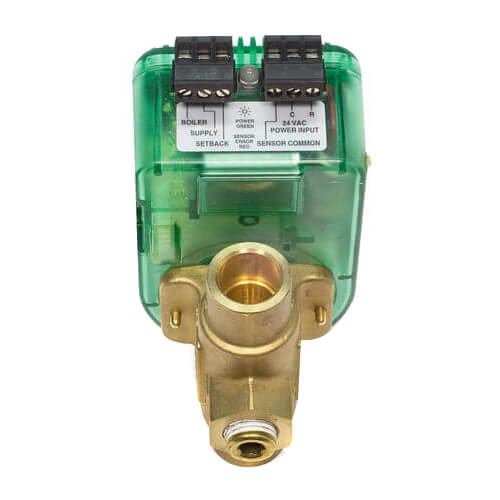

Taco iSeries Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
- For either outdoor reset control or fixed water supply temperature applications
- Protects boiler against flue gas condensation
Features:- Operates Off Constant Power or Relay End Switch
- Ball Valve Design, High Cv

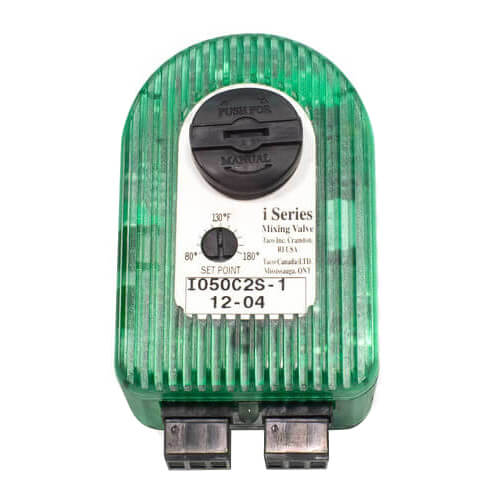

- Manual Operation Button
- Solid-State Microprocessor Design
- Easy, One-Hand Actuator Removal
- Multi-Status LED Indicator Light
- Sensor Included
- Fail Safe Mode
Specs
–
| Type: | Setpoint |
|---|---|
| Features: | Setpoint |
| Application: | Heating Hot and Chilled Water, up to 50% Glycol Closed Systems |
| Body Pattern: | 2-Way |
| Size: | 1/2" |
| Connection Type: | C x C |
| Connection Method: | Sweat |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Temperature Range (F): | 85°F - 150°F |
| Ambient Conditions: | < 90% Non-Condensing -22°F to 185°F Indoor Use Only |
| Max Pressure (PSI): | 300 |
| Sensors: | NTC Thermistor, 10 k ohm @ 77°F |
| Seat Leakage: | Drop-Tight Close Off |
| Voltage: | 24V |
| Hertz: | 60 |
| Amperage: | 0.4 |
| Fluid Temperature Range: | 20°F to 240°F |
| Height: | 3-9/16" |
| Width (Inches): | 2-3/8" |
| Flow Capacity (Cv): | 4.9 |
