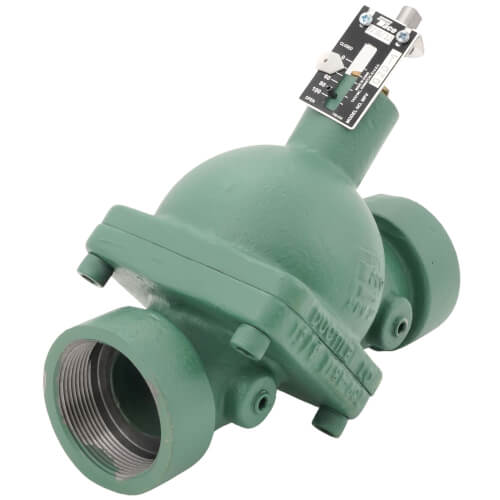

2" Threaded Plus Two Multi Purpose Valve (77 Cv)

Taco The new Taco "Plus Two" Multi-Purpose Valve combines all the valve functions that are normally required on the discharge side of a centrifugal pump in a hydronic heating or cooling system into one body. It is a Shut-Off Valve, a Non-Slam Check Valve, a Balancing Valve, and a Flow Metering Valve, and now it is field convertible from a straight pattern to a 90 degree right angle pattern. In addition the new "Plus Two" Multi-Purpose Valves have low pressure drops, equal to or better than any valve on the market today, and the stem seal packing can be replaced under full system pressure.

Product Features

• Horizontal or Vertical Installation
• Field Convertible to a Right Angle Valve
• Stem Seal Packing Replaceable Under Pressure
• Bronze Fitted Construction
• Five (5) Valves in One:
  - Shut Off Valve
  - Flow Control Valve (Globe Style)
  - Non Slam Check Valve
  - Flow Metering Valve
  - Straight Pattern Valve can be Converted to a Right Angle Pattern Valve

• Memory Indicator, Pointer & Scale
• Schrader Valve Metering Connections
• "O" Ring Sealed Valve Body
• Replaceable “Soft Seat”
• Low Pressure Drop (Equal to or Better than any Comparable Valve on the Market Today)
