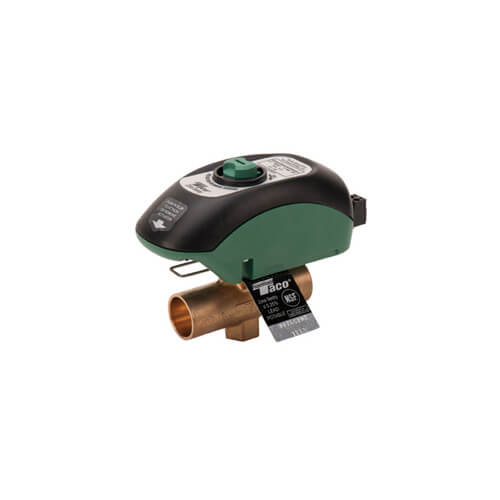

1/2" Normally Open Potable Water Zone Sentry Valve (Sweat)

Note: This zone valve is approved for Potable Water in accordance with the 2014 U.S. Safe Drinking Water Act .

The Taco Zone Sentry® Zone Valve enhances the overall performance of any zone valve system. The unique patented technology in the Zone Sentry® utilizes microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. The Taco Potable Water Zone Sentry valve is certified to NSF 61 G and is available in a 2-way sweat configuration with either a normally open or normally closed actuator. Some typical installations would include combination a domestic water and hydronic heating system, culinary installation or water shut off to a potable system.

Features:

• Certified NSF 61 G
• 1.44 watts in the on condition
• Suitable for condensing environments
• Universal installation orientation
• Up to 12 valves on (1) 40VA transformer
• Multi function LED assists with troubleshooting
• Easy to wire quick connections
• Bidirectional flow (you can't install the valve backwards)
• The actuator mounts on the valve in either direction
• 125 PSI shut-off pressure
• Quick release actuator mounting clip
• Manual override button
• Positional indicator shows the ball valves actual position
