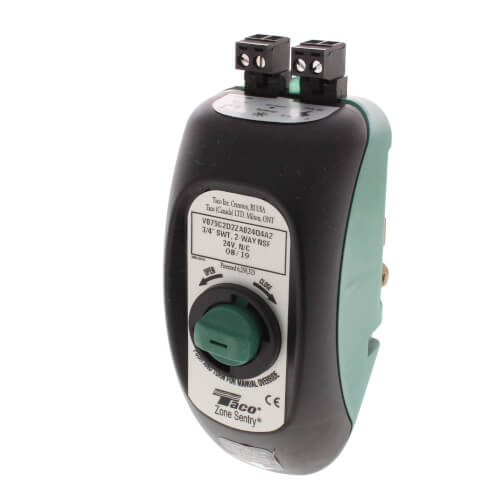

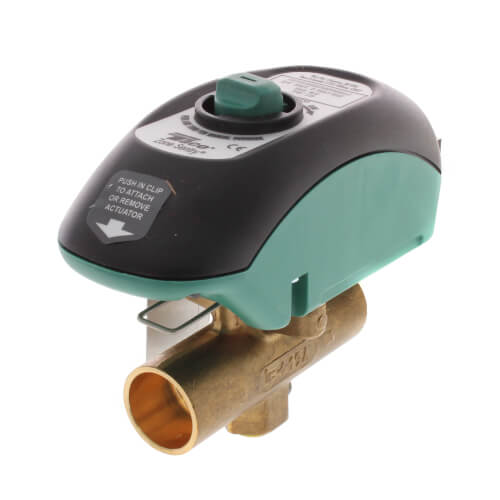

3/4" Normally Closed Potable Water Zone Sentry Valve (Sweat)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$362.94 each
Backorder
This item replaces: V075C2D2ZA024Q4A1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way
Sweat Connection
10.3 Cv
3/4"
24V
Normally Closed
Description
–
Note: This zone valve is approved for Potable Water in accordance with the 2014 U.S. Safe Drinking Water Act .
The Taco Zone Sentry® Zone Valve enhances the overall performance of any zone valve system. The unique patented technology in the Zone Sentry® utilizes microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. The Taco Potable Water Zone Sentry valve is certified to NSF 61 G and is available in a 2-way sweat configuration with either a normally open or normally closed actuator. Some typical installations would include combination a domestic water and hydronic heating system, culinary installation or water shut off to a potable system.
Features:
The Taco Zone Sentry® Zone Valve enhances the overall performance of any zone valve system. The unique patented technology in the Zone Sentry® utilizes microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. The Taco Potable Water Zone Sentry valve is certified to NSF 61 G and is available in a 2-way sweat configuration with either a normally open or normally closed actuator. Some typical installations would include combination a domestic water and hydronic heating system, culinary installation or water shut off to a potable system.
Features:
- Certified NSF 61 G
- 1.44 watts in the on condition
- Suitable for condensing environments
- Universal installation orientation
- Up to 12 valves on (1) 40VA transformer
- Multi function LED assists with troubleshooting
- Easy to wire quick connections
- Bidirectional flow (you can't install the valve backwards)
- The actuator mounts on the valve in either direction
- 125 PSI shut-off pressure
- Quick release actuator mounting clip
- Manual override button
- Positional indicator shows the ball valves actual position
Specs
–
| Application: | Zoning |
|---|---|
| Connection Type: | Sweat |
| Size: | 3/4" |
| Position: | Normally Closed |
| Voltage: | 24V |
| Flow Capacity (Cv): | 10.3 |
| Max Temp (F): | 240°F |
| Temperature Range (F): | 33°F - 240°F |
| Min Temp (F): | 33°F |
| Material: | Forged Brass |
| Max Close-Off PSI: | 125 psi |
| Max Pressure (PSI): | 300 |
| Amperage: | 0.48 |
| Hertz: | 60 |
| Type: | Potable Water |
| End Switch: | Yes |
| Body Pattern: | 2-Way |
