Description

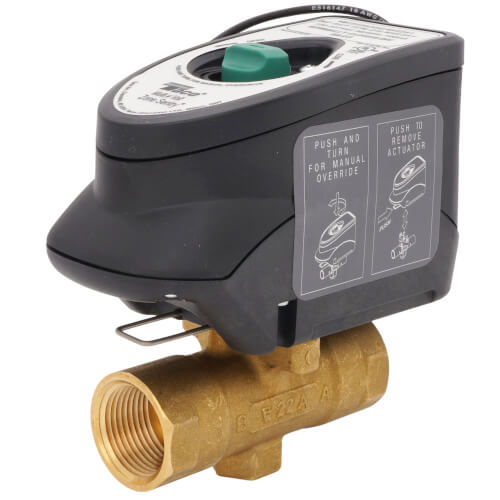

3/4" Zone Sentry Valve, Normally Closed. Multi-Volt (Threaded)

One valve takes the place of many. The Multi-Volt Zone Sentry will accept input voltages between 120 and 277VAC 50/60HZ. The Multi-Volt Zone Sentry zone valve is designed for use in hydronic HVAC systems, primarily in fan coils and air handlers or other HVAC systems where a quality line voltage zone valve is required. The Zone Sentry can be installed in both heating and cooling applications and is available in a normally closed or normally open configuration.

Specifications:
  • Max. Operating Pressure: 300 PSI (2100 kPa)
  • Max. Shutoff Pressure: 125 PSI (875 kPa)
  • Max. Ambient Temp.: 135 F
  • Fluid Temp. Range: 20-220 F (-7-104 C)
  • Seat Leakage: Drop-Tight Close-Off
  • Electrical Rating: 120 VAC to 277VAC, 1Ph, 50/60Hz
  • Power Consumption: 4 Watts
  • Power Consumption: 1.5 Watts
  • Max. Duty Cycle: 1 Cycle/Minute
  • Body Material: Forged Brass
  • Stem Material: Brass
  • Press Ring Material: Brass
  • Ball Material: Brass (Chrome Plated)
  • Seat Material: Modified Teflon
  • O-Rings Material: EPDM
Hide Description
Specs
Product Type:

Zone Valve

Voltage:

120-277v

Size:

3/4"

Connection Type:

Threaded

Position:

Normally Closed

Body Pattern:

2-Way

×
