Product Highlights
–
2-Way, Straight-Through
Sweat Connection
8.9 Cv
1"
120-277V
Normally Closed
Description
–

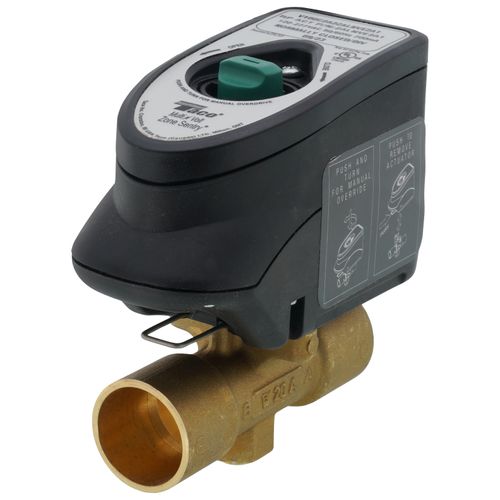

NOTE: Image may not depict actual product
The Taco Geo-Sentry® Zone Valve enhances the overall performance of any geothermal system. The unique patented technology in the Geo-Sentry® utilizes a microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. All this adds up to a geothermal zone valve that leads the industry in energy efficiency, flow capacity (Cv), shutoff pressure rating, ease of installation, diagnostic capability and the number of valves (12) that can be use on a standard 40VA transformer.
Features
The Taco Geo-Sentry® Zone Valve enhances the overall performance of any geothermal system. The unique patented technology in the Geo-Sentry® utilizes a microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. All this adds up to a geothermal zone valve that leads the industry in energy efficiency, flow capacity (Cv), shutoff pressure rating, ease of installation, diagnostic capability and the number of valves (12) that can be use on a standard 40VA transformer.
Features
- Up to 93% less energy usage
- Universal Installation Orientation
- Usable on Condensing Chilled Water Installations
- 12 valves on one 40VA transformer
- Multi-Function LED
- Quick Connect Wiring
- 125 PSI Shut-off
- Push button actuator replacement
- Easy wire quick connections Manual override button
- Positional indicator
Specs
–
| Application: | Zoning |
|---|---|
| Voltage: | 120-277V |
| Size: | 1" |
| Connection Type: | Sweat |
| Position: | Normally Closed |
| Flow Capacity (Cv): | 8.9 |
| Temperature Range (F): | 20°F to 220°F |
| Max Temp (F): | 135°F |
| Material: | Forged Bronze |
| Max Close-Off PSI: | 125 psi |
| Max Pressure (PSI): | 300 |
| Wiring: | 18" Leads Plug-In 4 Wire Screw Terminals |
| Hertz: | 60 |
| Body Pattern: | 2-Way Straight-Through |
| End Switch: | Yes |
