$83.79 each
In Stock
Get 1 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
4" Width
8" Height
5" Length
-40°F to 250°F
Description
–

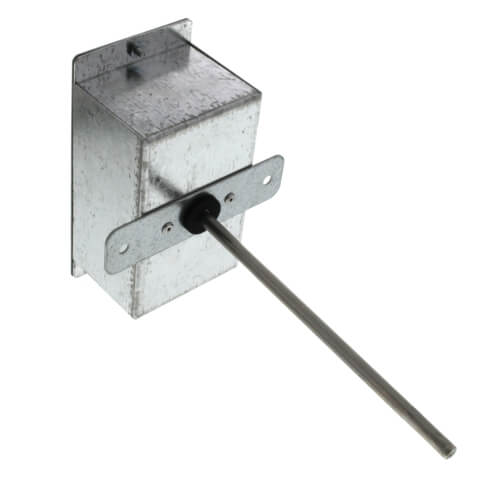

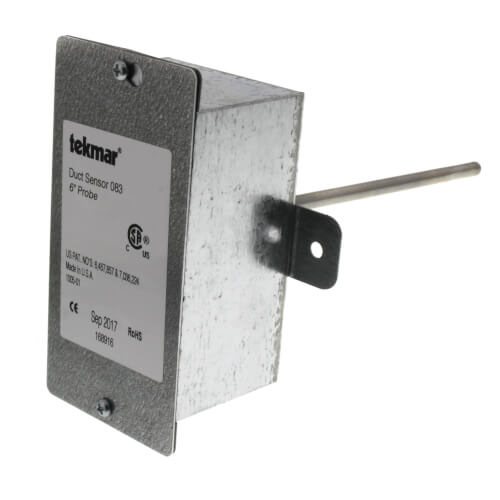

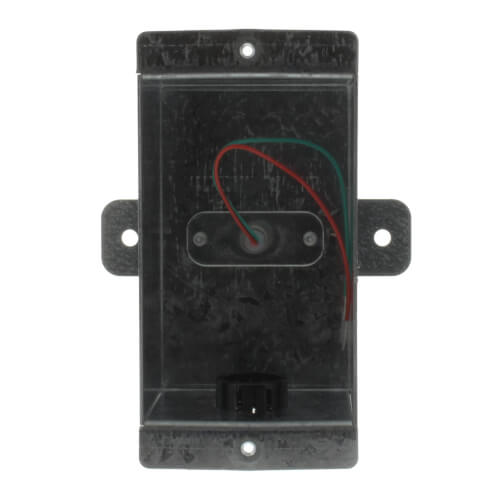

Description: The tekmar Duct Sensor 083 is designed to measure the average temperature of the air stream in a heating, cooling, or ventilation duct. The 083 has a 6" (150 mm) long probe connected to a 2" x 4" electrical box for easy wiring. Literature - D 081 Packaged Weight + 1 lb (454 g) Dimensions + 4" W x 8" H x 5" L (100 mm x 203 mm x 127 mm) Probe + 1/4" (6.33 mm) O.D., 0.020" (.5 mm) Wall, 6" (150 mm) 304 Stainless Steel Enclosure + NEMA 1 / IP30, 18 Gauge Galvanized Steel Approvals + CSA C US Listed Operating range + -40 to 250+F (-40 to 121+C) Sensor + NTC thermistor, 10 kΩ @ 77+F (25+C +0.2+C), +=3892
Specs
–
| Type: | Duct Sensor |
|---|---|
| Enclosure Type: | NEMA-1 |
| Width (Inches): | 4" |
| Height (Inches): | 8" |
| Length (Inches): | 5" |
| Power Supply: | Wired to Control |
| Temperature Range (F): | -40°F to 250°F |
