$273.24 each
In Stock
Get 2 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
4-3/4"
Difference Setpoint
24V
7/8" Depth
-76°F Min Temp
-76°F - 284°F
Description
–
Control Description

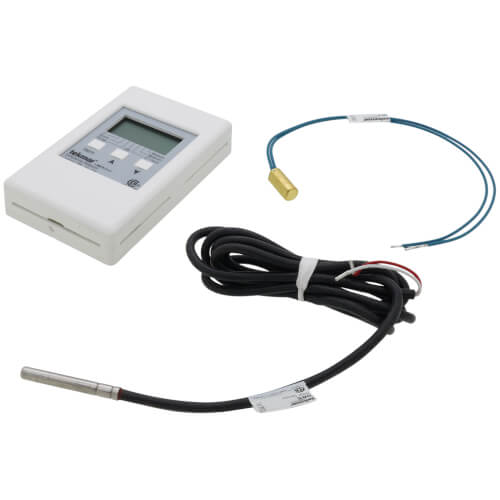

The Difference Setpoint Control 156 is designed to operate an on/off pump to transfer heat from a heat source to a storage tank. The control operates based on a setpoint temperature difference (ΔT). The relay turns on when the ΔT rises above the setpoint and turns off when the ΔT falls below the setpoint less the differential. The Source Minimum and Storage Maximum settings turn off the relay when heat transfer is no longer desirable. Potential applications include using solar collectors or a wood boiler as a heat source.
The Difference Setpoint Control 156 is designed to operate an on/off pump to transfer heat from a heat source to a storage tank. The control operates based on a setpoint temperature difference (ΔT). The relay turns on when the ΔT rises above the setpoint and turns off when the ΔT falls below the setpoint less the differential. The Source Minimum and Storage Maximum settings turn off the relay when heat transfer is no longer desirable. Potential applications include using solar collectors or a wood boiler as a heat source.
- Literature: D 156, A 156, D 001, D 070
- Control: Microprocessor control; This is not a safety (limit) control
- Packaged Weight: 0.8 lb. (360 g)
- Enclosure: C, White PVC plastic
- Dimensions: 4-3/4" H x 2-7/8" W x 7/8" D (120 x 74 x 22 mm)
- Approvals: CSA certified to CSA 22.2 No 24 and UL 873
- Ambient Conditions: Indoor use only, -20 to 120¼F (-30 to 50¼C), < 90% RH non-condensing
- Power Supply: 24 V ¼10% 50/60 Hz 2 VA, 24 V (dc) ¼10% 0.04 A
- Relay: 240 V (ac) 10 A 1/3 hp, pilot duty 240 VA
- Sensors Included
- NTC thermistor, 10 komega @ 77¼F (25¼C ¼0.2¼C) +=3892 Two of Universal Sensor 071
Specs
–
| Application: | Alternative Energy |
|---|---|
| Width: | 2-7/8" |
| Height: | 4-3/4" |
| Stages: | Difference Setpoint |
| User Interface: | Push Button LCD |
| Voltage: | 24V |
| Depth (Inches): | 7/8" |
| Ambient Conditions: | Indoor Only: -20°-120°F < 90% RH non-condensing |
| Power Supply: | 24V (dc) 24V (ac) |
| Relays: | 240 V (ac) 10 A-1/3 hp-pilot duty 240 VA |
| Min Temp (F): | -76°F |
| Temperature Range (F): | -76°F - 284°F |
| Max Temp (F): | 284°F |
| Control: | Microprocessor Control |
| Weight (lbs): | .7 lbs |
| Sensors: | NTC Thermistor, 10 k ohm @ 77°F |
| Enclosure Type: | C |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.67 out of 6 reviews
100% would recommend this product
5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%
Showing 1-6 of 6 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Yes I will buy this product again.
I use the Tekmar 156 to help prevent thermal shock in cast iron boilers. I used the tekmar 157, but it is no longer made. The Tekmar 157 is the best product I have found to do the job I need.
Steve W.
Quincy, Illinois
3 years ago
Verified Buyer
Was this review helpful to you?
Was just what we needed
Was what I expected
Creighton
New Hampshire
7 years ago
Verified Buyer
Was this review helpful to you?
great product, fast service
I am replacing a solar controller that was hit buy power surge. Hooked it up, replaced sending units with the ones that came with unit and it works GREAT!! Thank You
sunshine
mid minnesota
10 years ago
Verified Buyer
Was this review helpful to you?
wide range of uses.
Using this control with an indirect 80 gallon DHW pre-heat tank, where the source is a GEO thermal buffer tank that can also be heated by outdoor wood furnace. This control works flawlessly. When there is more heat in the source than in the storage, it comes on! When there is less heat in the source than in the storage, it doesn't come on and needlessly run the zone. Set it once and forget it. Now I can warm up well water from 40 degrees to 110 degrees with the heat pump before it goes into the electric hot water tank, saving me kWh. Using the outdoor wood furnace, I can get the pre-heat tank up to 155 degrees before it mixes with the electric tank, and save even more kWh.
Nigel from Canada.
Thunder Bay, ON.
11 years ago
Was this review helpful to you?
Works good
Using with a solar evacuated tube system
BrnmccO1
Indiana, USA
11 years ago
Was this review helpful to you?
Tekmar 156 does it all
The Tekmar 156 is the perfect control for a home based solar water heating system. Mounted next to my house thermostat, the read-outs tell me everything I want to know about how my system is operating, and at the same time completely automating the control of my circulating pump for maximum efficiency. Once installed, you just sit back and let the control run the system.
Scott
Blanchardville, WI.
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: does product include sensors?
Asked by Kevin 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it includes Solar Sensor 085 and Universal Sensor 071.
