265 has been discontinued
Discontinued May 22, 2020
This product was discontinued by the manufacturer.
MANUALS (2)
Suggested Alternative:
Boiler Control - One tN4, Four Stage Boiler & DHW / Setpoint
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
3 Boiler
7-9/16" Width
6-5/8"
260v
2-13/16" Depth
-76°F Min Temp
Description
–

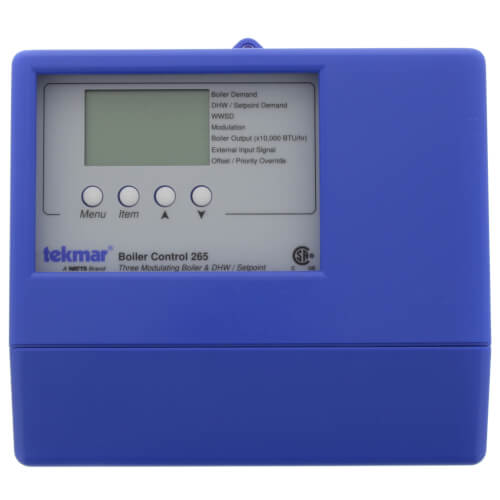

The Boiler Control 265 is a microprocessor-based control designed to operate up to three modulating boilers. The 265 can provide either outdoor reset and setpoint operation or outdoor reset and DHW operation. The 265 provides either sequential or parallel modulation and has Equal Run Time Rotation of the boilers. The control also operates the system pump and individual boiler pumps. The 265 provides either a 0 -20 mA or 4 -20 mA signal to each boiler. A contact is also available for either a combustion air damper or external alarm. The control can provide outdoor reset using an outdoor sensor or the control can accept a 0 -10 V (dc) signal from an EMS / BAS to establish the required water temperature.
Specs
–
| Application: | Multiple Boilers |
|---|---|
| Stages: | 3 Boiler |
| Width (Inches): | 7-9/16" |
| Height: | 6-5/8" |
| User Interface: | LCD Push Button |
| Voltage: | 260v |
| Depth (Inches): | 2-13/16" |
| Ambient Conditions: | Indoor Only: 32°-104°F < 90% RH non-condensing |
| Power Supply: | 115V (ac) |
| Relays: | 230 V (ac) 5 A-1/3 hp- pilot duty 240 VA |
| Min Temp (F): | -76°F |
| Max Temp (F): | 266°F |
| Temperature Range (F): | -76°F - 266°F |
| Control: | Microprocessor PID control |
| Weight (lbs): | 3.5 lbs |
| Demands: | 20 to 260 V (ac) 2 VA |
| Sensors: | NTC Thermistor, 10 k ohm @ 77°F |
| Output: | 0-20 mA / 4-20 mA (up to 1000 ohm load) |
