Description
Control Description: The Mixing Control 361 is a microprocessor-based outdoor reset control designed to operate a permanent capacitor, impedance protected or equivalent pump at varying speeds. The 361 also provides for boiler minimum protection, system pump operation, and boiler operation. As well, a tekmar indoor sensor can be connected to the control to provide indoor temperature feedback.
Literature + D 361, A 361's, D 001, D 070, E 021
Control + Microprocessor PID control; This is not a safety (limit) control

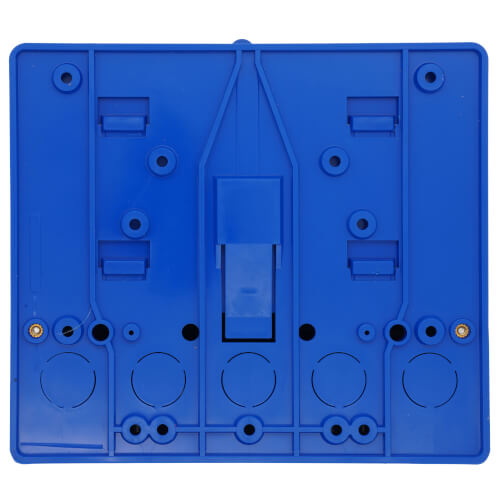

Packaged Weight + 3.0 lb. (1380 g), Enclosure A, blue PVC plastic
Dimensions + 6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
Approvals + CSA C US, meets ICES & FCC regulations for EMI/RFI
Ambient Conditions + Indoor use only, 32 to 102+F (0 to 39+C), < 90% RH non-condensing
Power Supply + 120 V +10% 50/60 Hz 1650 VA
Variable Pump + 240 V (ac) 2.4 A 1/6 hp, fuse T2.5 A 250 V
Relays + 240 V (ac) 10 A 1/3 hp, pilot duty 240 VA
Demand + 20 to 260 V (ac) 2 VA
Sensors Included + NTC thermistor, 10 kΩ @ 77+F (25+C +0.2+C) +=3892 Outdoor Sensor 070 and 2 of Universal Sensor 071
Optional Devices + tekmar type #: 031, 032, 076, 077
Read more
Manuals (2)
Specs
Application:
Mixing
Type:
Mixing Control
Width (Inches):
7-9/16"
Height:
6-5/8"
User Interface:
LCD
Push Button
Voltage:
260v
Depth (Inches):
2-13/16"
Ambient Conditions:
Indoor Only: 32°-102°F <90% RH non-condensing
Power Supply:
120V (ac)
Relays:
240 V (ac) 10 A-1/3 hp- pilot duty 240 VA
Max Temp (F):
266°F
Temperature Range (F):
-67°F - 266°F
Min Temp (F):
-67°F
Control:
Microprocessor Control
Demands:
24 V (ac) 2 VA
Weight (lbs):
3 lbs
Sensors:
NTC Thermistor 10 k ohm @ 77°F
Enclosure Type:
A

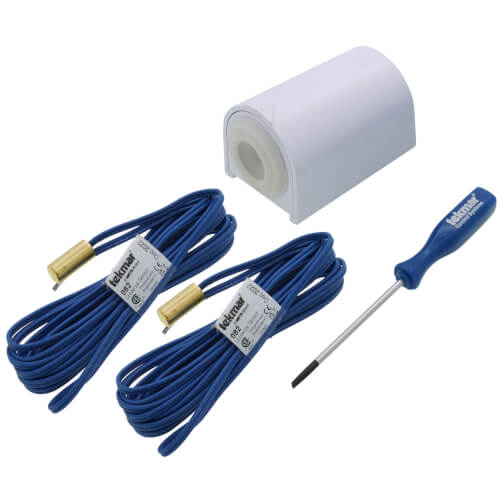

Includes:
(2) 071 Sensors
070 Sensor
Floating Output:
24 V (ac) 0.34 A 8 VA
×
