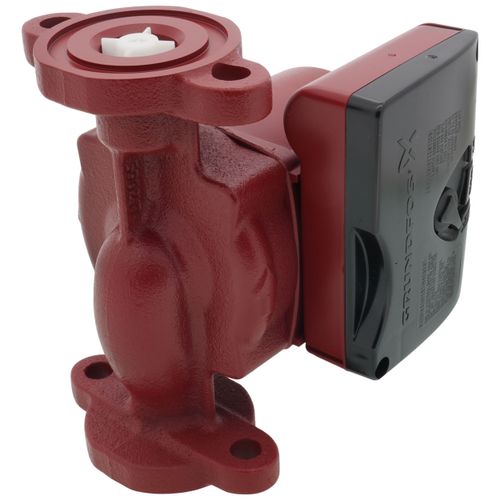

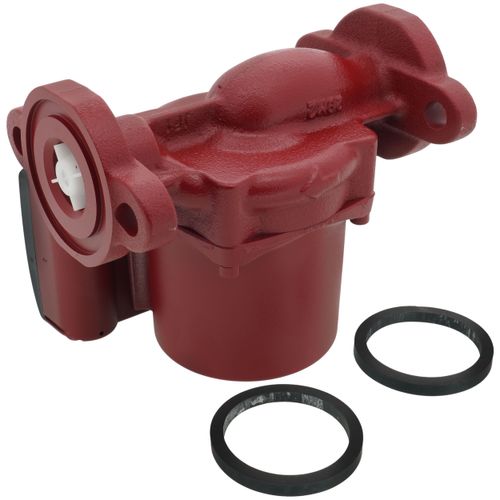

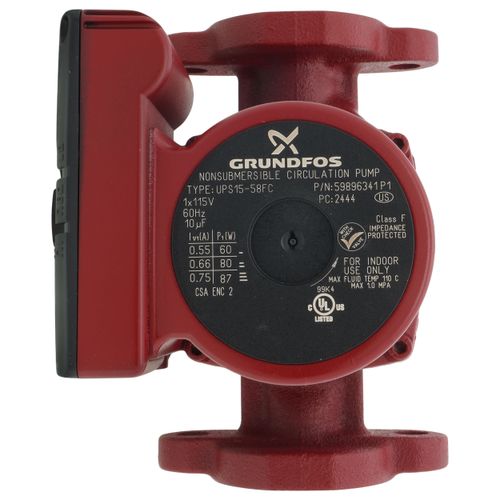

Grundfos UPS15-58FC 3-Speed Circulator Pump, 1/25 HP, 115 Volt
The Grundfos UPS15-58FC is a 3-speed cast iron circulator pump designed for residential and light commercial hydronic heating applications, including boilers, radiant floor heating, and hot water recirculation systems. This 1/25 HP, 115-volt pump features a maintenance-free canned rotor design with an integrated check valve and accepts multiple flange sizes (3/4", 1", 1-1/4", and 1-1/2"). The unit delivers flow rates from 0 to 17 GPM and operates across three selectable speeds for optimized performance.
Key Features & Benefits
Compatibility & Requirements
Flanges must be purchased separately and matched to the specific pipe connection size in your system. The pump requires flange pairs sized for 3/4", 1", 1-1/4", or 1-1/2" connections depending on your piping configuration. Select flanges based on connection type: NPT threaded, sweat (solder), or press-fit connections are available. Installation should be performed by a qualified professional familiar with hydronic heating systems and local plumbing codes. System must be properly sized to ensure the pump's flow and head characteristics match the heating load and pipe friction losses. Verify that electrical service provides 115 volts AC, 60 Hz single-phase power. The pump shaft must be installed in a horizontal position, though piping can run vertically or horizontally. Confirm system operating pressure does not exceed 145 PSI and operating temperature remains between 36°F and 230°F. For systems with multiple zones, consider whether the integral check valve should remain installed or be removed to prevent flow restriction.
Installation & Care

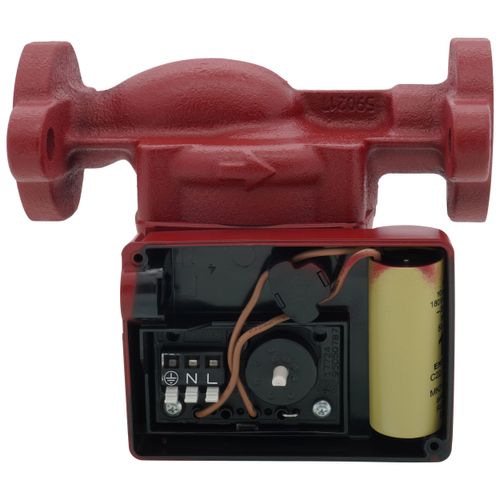

Shut off power and drain the system section where the pump will be installed. Mount the pump with the motor shaft in a horizontal orientation and the pump body positioned to allow the flow direction arrow on the housing to match system flow direction. Install flange pairs on inlet and outlet pipes, ensuring gaskets are properly seated. Bolt the pump to the flanges using the provided hardware, tightening nuts evenly in a crisscross pattern. If removing the check valve for unrestricted flow applications, break apart the plastic valve assembly and extract the core using needle-nose pliers, then remove the remaining retention ring from the casting groove. Confirm all electrical connections are de-energized, then wire the pump according to the wiring diagram on the motor housing. Refill the system and purge all air from the piping and pump body through system bleed valves. Restore power and select the initial speed setting. Monitor the system for several heating cycles and adjust speed up or down as needed to achieve proper circulation and even heat distribution. Check for leaks at flange connections within the first 24 hours of operation. Inspect the pump quarterly for unusual noise, vibration, or heat. Maintain proper system water treatment to prevent scale buildup and corrosion. The high speed setting (87 watts) draws approximately 10% more power than medium speed and is designed for continuous operation when higher flow rates are required. Maximum flow through 3/4" Type M copper tube is 6 GPM; exceeding this rate can erode the tube. Recommended flow is 1 to 4 GPM per zone. For unequal length zones, install a circuit balancing valve on the shorter zone and set flow between 1 to 4 GPM, then adjust pump speed for the second zone. Excessive noise in baseboards indicates high flow rates.
What's Included
Frequently Asked Questions
Q: Can I install this pump with the flow direction from top to bottom in a vertical pipe run?
A: Yes, the pump can be installed in vertical piping with flow from top to bottom or bottom to top, provided the motor shaft remains in a horizontal position. Pumping upward allows a constant gravity-fed supply to ensure the pump does not run dry, which can cause seal failure.
Q: Should I remove the check valve for my application?
A: If replacing a pump that did not have a check valve built in, you likely don't need it. Removing the check valve will give slightly more flow. Check valves prevent backflow; if backflow is not a concern, remove it. To remove, break apart the plastic valve assembly, extract the core with needle-nose pliers, and remove the retention ring from the groove. The pump operates efficiently with or without the check valve installed.
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Amperage: | 0.75 |
| Application: | Zoning |
| Poles: | 2 |
| Material: | Cast Iron |
| Voltage: | 115V |
| Max Pressure (PSI): | 145 |
| Type: | 3-Speed Pump |
| Features: | Integral Check Valve |
| Horse Power: | 1/25 |
| Flow Range (GPM): | 0-17 |
| Max Flow (GPM): | 17 |
| Max Head (Ft): | 19.5 |
| Head Range (ft.): | 0-19.5 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 2450 |
| Temperature Range (F): | 36°F - 230°F |
| Connection Size: | 1-1/4" 1" 1-1/2" 3/4" |
| Connection Type: | Flanged x Flanged |
Both pumps are sized for 1/25 hp and 115 volts. We recommend confirming with a licensed plumber that these are sized out correctly for your application.
The pump would be warm to the touch and should be making some slight noise.
YOU CAN TELL IF THE PUMP IS WORKING IF IT FEELS WARM (THAT MEANS IT IS MOVING HEATED WATER THROUGH THE PUMP) AND ALSO BY PUTTING A FINGER IN THE MIDDLE OF THE BLACK CIRCULAR PART TO SEE IF YOU FEEL IT VIBRATING
Without more specific information it is hard to say. There are many factors that could be affecting the system and the pump operation. Please have a plumber or technician inspect the system to see what is causing this issue.
The brochure below shows the GPM per speed: http://s3.supplyhouse.com/manuals/1249544647674/Grundfos_ups15-58fc_Product_Data.pdf Speed 1 range is 0-11, speed 2 is 0-15 and speed 3 is 0-17.5. The GPM range varies depending on the ft. of head as well.
The UPS15-58FC and UP15-58B7 are quite similar yet significantly different. The first one is 3 speed (denoted by the "S"), with flanged connection ("F"), and a check valve ("C"). The second pump is single speed (since there is no "S" following "UP"), with a bronze body ("B"), and 3/4" internal sweat connection (7). We do not recommend replacing a UPS15-58FC with a UP15-58B7 or vice versa. They each have their own specific application and are not so easily interchanged.
Yes you can up to down .down to up .left to right and right to left you only need to jeep motor horizontaly and it will run without having probleme
With my system, pumping upward always allows a constant gravity fed supply of liquid to insure the pump does not run dry. Running dry will cause seal failure.
i would check the wiring, as that is the only thing that will make a motor run
we are not given manuals for that installation
Removing the check valve will give slightly more flow, just be sure that your system does not require a check valve in the pump. If you are replacing a pump that did not have a check valve built in, then you likely don't need it. Be sure to install the new pump according to the manufacturer's instructions, and purge the air from the system.
Check valves are there to prevent backflow. If backflow is not a concern then take it out. If for no other reason, it is one less device that could cause a problem.
Hi you can run the pump with or without the check valve and it will run very well and will not be less efficient it is only to block back flow in the pump
Yes it is ok to run on high speed these pump are like universal pump they replace some other old pump they made one to fit all with the same flange and fit almost anywere they insert a control box with 3 speed to be able to run the application were it use you can check on owner manual to see the pressure you nned depend on the pump curve capabality but if it work well on hight speed let it on and enjoy the heat ..!!!!!
I have looked extensively for any indication that the multi-speed feature implies a consideration for limiting power via duty cycling, etc. when operating at higher settings and have found nothing. I believe the high speed setting (87 Watts, and less than 10% greater than the mid-speed setting) is the nominal performance configuration and that it is designed to operate continuously this way. The lower settings in the UPS series permit energy savings and quieter operation when the higher pump speed is not needed.
It's fine until it's not fine. Max flow thru 3/4" Type M copper tube is 6 gal/min. Higher than that erodes the tube. Flow should be 1 to 4 gal/min. You have unequal length zones. When sys. is running most of the water and heat flows thru the shorter zone. Running on Hi may exceed the flow rate thru the shorter zone, eroding the tube. Put in a Caleffi Circuit Balancing Valve on the short zone and set it between 1 to 4 gal min. Then adjust the pump speed setting for the second zone. Excessive noise in the baseboards indicates hi flow. It's not a simple answer. You want 1 to 4 gal/min flow above the Pressure Loss (Friction Loss) of the pipe and fittings.
Yes, using "High" as a run setting will be fine. Hazard Stewart
No problem leaving it on high if that's what works.
I have two out of six that I run on high and have not had any problems after 2 years. Just make sure you bleed all the air out of system, as that causes folks a lot of problems with the circulation. Sent from Jeff by mobile
I have run mine on all 3 settings with no adverse results.The pump draws very little electricity and will not overheat.
It is fine to use the high setting. I have been using this setting on a couple of my UPS15-58 pumps with no problem. It just uses 7 additional watts of power moving from medium to high.
