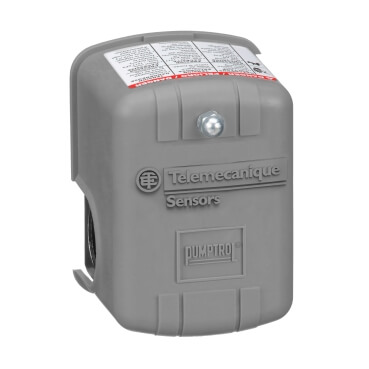

Water Pump Pressure Switch, Adjustable Differential, DPST
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$45.64 each
CALL TO ORDER
1-888-757-4774
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (2)
This item replaces: 9013FSW29J18
Non-Returnable Item
–
Our standard return policy does not apply to this special-order item. Once ordered, it cannot be returned or cancelled.
Free Shipping On orders over $99
Product Highlights
–
NPT Connection
1/4" Connection
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
Note: When placing order, please specify if you want 20 - 50 pressure setting.
This electromechanical pressure switch is used to control electrically driven water pumps.
Product Features:
Note: When placing order, please specify if you want 20 - 50 pressure setting.
This electromechanical pressure switch is used to control electrically driven water pumps.
Product Features:
- Electrical Circuit Type: Power circuit
- Scale Type: Adjustable Differential
- Setting: Internal
- Adjustable Range on Rising Pressure: 20 to 65 psi
- Approximate Adjustable Differential: 15 to 30 psi
- Destruction Pressure: 220 psi
- Operating Temperature Range: -33 to 257°F
- Pressure Actuator: Diaphragm
- Pressure Switch Type of Operation: Regulation between 2 thresholds
- Local display: Without
- Contacts Type and Composition: 2 NC, snap action, DPST-DB, Form YY
- Operating Position: Vertical position
- NEMA rating: NEMA 3R UL 50
- Product Certifications: CSA file LR25490, UL listed file E12158
Specs
–
| Switch: | DPST |
|---|---|
| Pressure Differential: | 15 to 30 psi |
| Operating Temp Range: | -33° to 257°F |
| Phase: | 1 3 |
| Pressure Range: | 20 to 65 psi |
| Connection Size: | 1/4" |
| Connection Type: | NPT |
