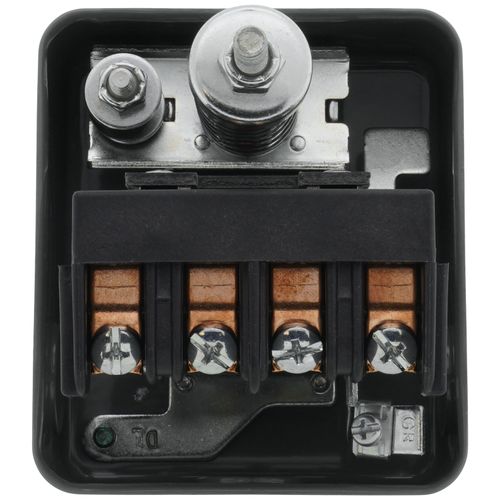

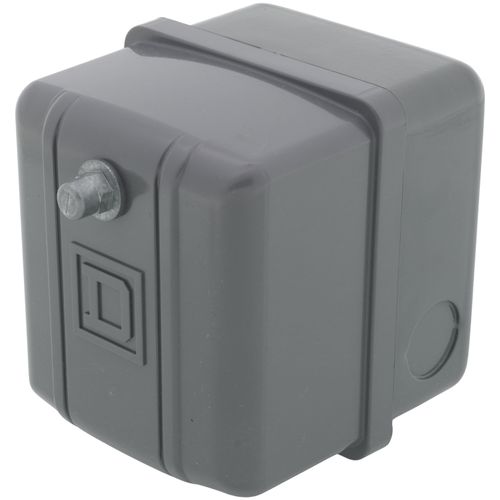

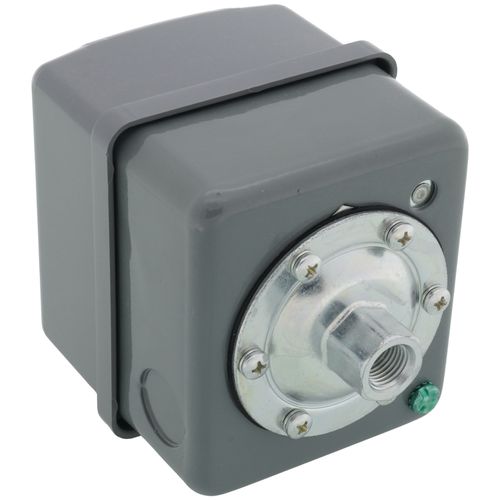

Air Compressor and Water Pump Pressure Switch, 75/100 PSI, DPST
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$87.77 each
In Stock
Order by 6PM, receive Monday
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
200 MAX PSI
40 PSI
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
Features:
Features:
- Item: Pressure Switch
- Pressure Switch Application: Air Compressor and Water Pump
- Manual Switch Action: None
- Pressure Switch Port Type: (1) Port, 1/4" FNPS
- Pressure Switch Factory On/Off Setting: 75/100 psi
- Pressure Switch Unloader: No
- Pressure Switch Differential: 20 to 40 psi
- Pressure Switch Range: 40 to 200 psi
- Pressure Switch Electrical Contact Form: DPST
- Pressure Switch Action: Standard
- NEMA Rating:1
- Series: 9013GHG
- HP @ 1 Phase - 120V: 2
- HP @ 1 Phase - 240V: 3
- HP @ 3 Phase - 240V: 5
- HP @ 3 Phase - 480V: 5
- Temp. Range-22 Degrees to 257 Degrees F
- Standards: UL 508, NEC Article 430-84, ANSI /NSF Standard 61, FDA 21CFR.2600, CSA Certified
- Special Features: Nitrile (Buna-N) Diaphragm
- AC Contact Rating10A @ 575V
Specs
–
| Pressure On/Off Setting (PSI): | 75/100 |
|---|---|
| Switch: | DPST |
| Pressure Range: | 40 to 200 psi |
| Pressure Differential: | 20 to 40 psi |
| Max Pressure (PSI): | 200 |
| Min Pressure (PSI): | 40 |
