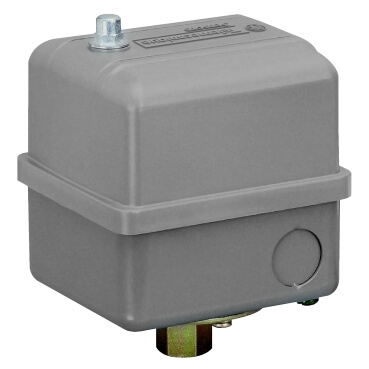

Air Compressor and Water Pump Pressure Switch, Adjustable, DPST

Brand:
Telemecanique (Square D)
SKU:
9013GHG2J99H
Rating:
(0)
Q&A:
(0)
Air Compressor and Water Pump Pressure Switch, Adjustable, DPST
Magnifying glass
Hover image to zoom
$118.74 each
CALL TO ORDER
1-888-757-4774
Backorder
Backorder
Get it Wed, Aug 5 - Wed, Sep 2

MANUALS (4)

Brochure
Specification Sheet
Product Overview
Install Instructions
Brochure
Specification Sheet
Product Overview
Install Instructions

Non-Returnable Item

–
Our standard return policy does not apply to this special-order item. Once ordered, it cannot be returned or cancelled.
Free Shipping This item ships free

Product Highlights

–
Product Highlight: Max Pressure (PSI)
200 MAX PSI
Product Highlight: Min Pressure (PSI)
20 PSI

Description

–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged

Note: Pressure settings must be provided at time of ordering

Specifications:
  • Range of product: Square D Pumptrol
  • Pressure sensor name: 9013GH
  • Pressure sensor size: 200 psi (40...170 psi)
  • Value of setting: Specify pressure settings
  • Electrical circuit type: Power circuit
  • Product specific application: Control electrically driven water pumps and air compressors
  • Pressure Sensor Type: Electromechanical pressure switch
  • Controlled Fluid: Air -22…257 °F (-30…125 °C))
  • Controlled Fluid: Fresh water: -22…257 °F (-30…125 °C))
  • Adjustable Range on Rising Pressure: 65…200 psi (448.16…1378.95 kPa)
  • Approximate Adjustable Differential: 20…40 psi (137.90…275.79 kPa)
  • Destruction Pressure: 300 psi (2068.43 kPa)
  • Pressure Actuator: Diaphragm
  • Pressure Switch Type of Operation: Regulation between 2 thresholds
  • Scale Type: Adjustable Differential
  • Setting: Internal

Specs

–
Switch:

DPST

Min Pressure (PSI):

20

Max Pressure (PSI):

200

Pressure Differential:

20 to 40 psi
