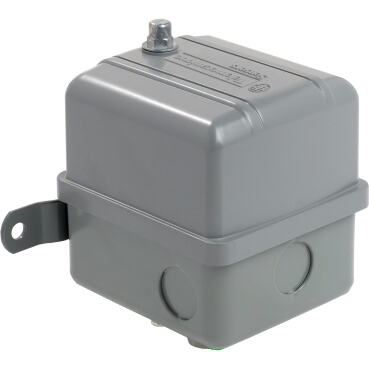

Pressure Switch, 65/200 PSI, DPST
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$102.87 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
Note: Image may not be exact representation of item.
Specifications:
Note: Image may not be exact representation of item.
Specifications:
- Item: Pressure Switch
- Enclosure type: Enclosure standard environment indoor
- Product specific application: Control electrically driven water pumps and air compressors
- Range of product: Square D Pumptrol
- Switch application: Standard
- Adjustable range on rising pressure: 65...200 psi
- Approximate adjustable differential: 20...40 psi
- Depth: 3.68 in
- Electrical connection: Screw clamp terminal
- Fixing mode: By brackets
- Fluid connection type: 0.25 inch NPSF internal
- Height: 5.72 in
- Material: Zinc plated steel flange
- Materials in contact with fluid: Nitrile (Buna-N) diaphragm
- Maximum pressure: 300 psig
- Motor power: hp 3 hp 115 V AC 3 phases, 5 hp 460/575 V AC 3 phases, 5 hp 460/575 V AC 1 phase, 2 hp 115 V AC 1 phase, 3 hp 230 V AC 1 phase, 5 hp 230 V AC 3 phases
- Number of poles: 2
- Permissible voltage: <= 575 V AC
- Pressure actuator: Diaphragm
- Pressure setting range: 70...90 psi
- Switch function: DPST
- NEMA degree of protection: NEMA 1
Specs
–
| Product Type: | Pressure Switch |
|---|---|
| Switch: | DPST |
