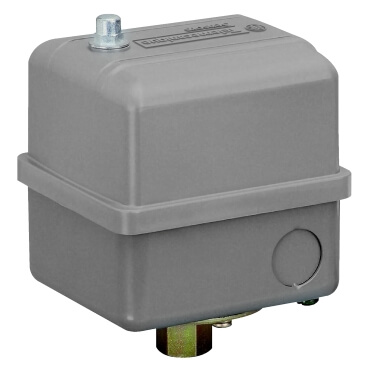

Pumptrol Air Compressor or Water Pump Pressure Switch, Specify PSI, Snap Action, DPST
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$180.59 each
CALL TO ORDER
1-888-757-4774
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (3)
Non-Returnable Item
–
Our standard return policy does not apply to this special-order item. Once ordered, it cannot be returned or cancelled.
Free Shipping This item ships free
Product Highlights
–
Adjustable
575v
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
Square D Pumptrol, pump or compressor switch 9013GM,adjustable diff., factory setting
Specifications:
Square D Pumptrol, pump or compressor switch 9013GM,adjustable diff., factory setting
Specifications:
- Pressure Sensor Size: 241.32 kPa (37.92…210.29 kPa)
- Value of Setting: Specify Pressure Setting
- Electrical Circuit Type: Power Circuit
- Product Specific Application: Control electrically driven water pumps and air compressors
- Pressure Sensor Type: Electromechanical pressure switch
- Controlled Fluid: Air (-30…125 °C) Fresh water (-30…125 °C)
- Adjustable Range on Rising Pressure: 68.95…241.32 kPa
- Approximate Adjustable Differential: 27.58…55.16 kPa
- Destruction Pressure: 689.48 kPa
- Pressure Actuator: Diaphragm
- Pressure Switch Type of Operation: Regulation between 2 thresholds
- Scale Type: Adjustable Differential
- Setting: Internal
- Contacts Type & Composition: 2 NC, snap action, DPST-DB, Form YY
- Cable Entry Number: 3 knock-outs for 1/2" conduit conforming to UL 508
- Electrical Connection: Screw-clamp terminals, clamping capacity: 10 AWG
- Fluid connection Type: 0.25 inch NPSF internal conforming to UL 508
- Materials in contact with fluid Zinc plated steel or equivalent flange; Nitrile (Buna-N) or equivalent rubber diaphragm
- Electrical Durability 100000 cycles, operating rate <10 cyc/mn
- Mechanical Durability 300000 cycles
- Terminal Block Type 4 terminals
- Maximum operating rate 10 cyc/mn
Specs
–
| Switch: | DPST |
|---|---|
| Differential: | Adjustable |
| Voltage: | 575v |
