DPST Vacuum Switch (16.5 to 25"Hg)

Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged

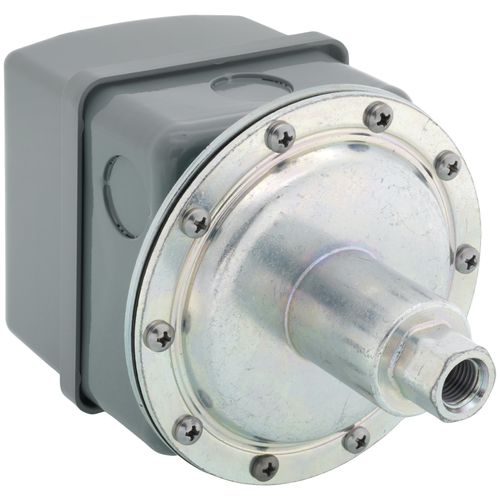

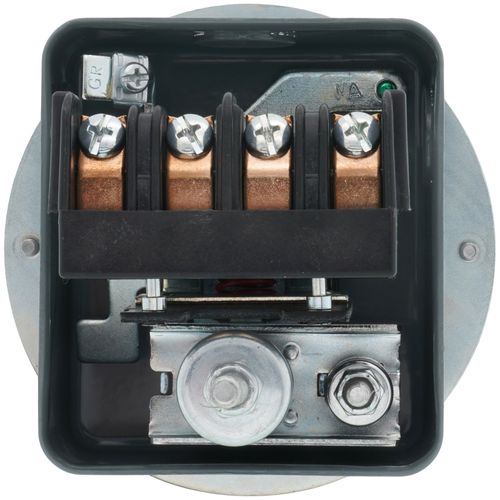

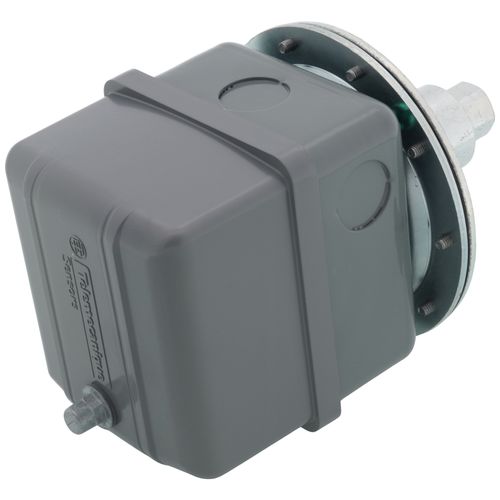

Schneider Electric / Square D Vacuum switch with adjustable scale features 1/2 Inch -14 NPT internal conduit connection. It is ideally used in power rated and indoor applications. It measures 4.580 Inch x 4.370 Inch x 7.130 Inch. Switch need less than or equal to 120 cycles per minute and temperature of -10 to 185 deg C for its operation. The process fluids used in switch is hydraulic oil, noncorrosive liquids, air and noncorrosive gas with 1/4 Inch -18 NPSF connection. It features electrical connection eight screw-clamp terminals to accommodate wires of range 22 - 12 AWG. It has DPST contact configuration with NEMA 1 rated enclosure. Switch is UL listed and CSA certified.

Specifications:

• Item: Vacuum Switch
• Material: Contact With Fluid: Zinc-Plated Steel, Nitrile (Buna-N), 3M Scotch-Grip 847 Rubber And Gasket Adhesive; PolypropyleneCover, Noryl Thermoplastic Resin Or Equivalent
• Contact Configuration: DPST-DB-2 NC, Form YY, Snap Action, Silver Cadmium Contact
• Connection: 1/2 Inch NPT
• Environmental Conditions: 10 To 185 deg F Storage Temperature
• Enclosure: NEMA 1 Per UL 698
• Brand Name: Schneider Electric / Square D
• Operating Cycles: 300
• Power Rating: 5 hp
• Process Fluid: Air (-40 to 250 deg F), Water (-40 to 250 deg F), Hydraulic Oil (-40 to 250 deg F), Gas (-40 to 250 deg F)
• Process Connection: 0.25 Inch 18 NPTF, UL508
• Size: 4.580 Inch Width x 4.370 Inch Depth x 7.130 Inch Height
• Sensor Type: Vaccum, 25 Hg
• Application: For Use On 9016GVG Series Switches, Power Rated Pressure Switches
• Type: Type 9016G
• Voltage Rating: 480 Volt AC
• Standards: UL Listed File #E12158 CCN NKPZ, CSA Certified File: LR25490, RoHS Compliant
• Temperature Rating: 10 to 185 deg F
• System Pressure: 150 psi
