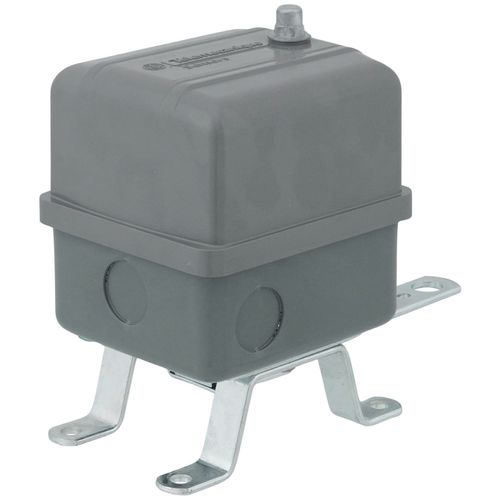

Open Liquid Level Switch, Close On Rise, NEMA 1, 1-1/4" Float Travel (575V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$172.50 each
In Stock
Get 3 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Close on Rise
1-1/4"
10 Amps
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
- Electrical Connections: Screw Clamp
- HP @ 1 Phase - 120V: 2
- Contact Form: DPST
- Max. Current: 600A
- HP @ 3 Phase - 240V: 5
- Operating Temp. Range: -22 Degrees to 220 Degrees F
- HP @ 1 Phase - 240V: 3
- Includes: Nameplate
- NEMA Rating: 4
- Body Material: Steel
- VA Rating: 460VAC
- Width: 2.53"
- Float Travel: 1-1/4"
- Max. Voltage: 575
- Item: Open Liquid Level Switch
- Conduit Size: 3-1/2"
- Height: 5.56"
- Float Length: 7.00"
- Float Position: Below
- Float Dia.: 7.00"
- Standards: UL, CSA
- Float Material: Stainless Steel
- Switch Function: Close On Rise
- Overall Length: 7.10"
Specs
–
| Switch Action: | Close on Rise |
|---|---|
| Max Voltage: | 575V |
| NEMA Rating: | 1 |
| Length: | 1-1/4" |
| Poles: | 2 |
| Amperage: | 10 |
| Application: | Liquid Flow |
