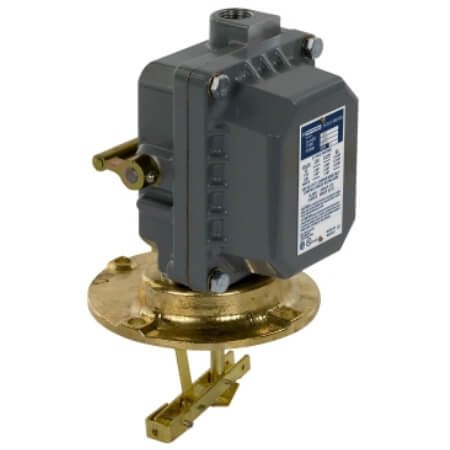

Liquid Level Switch, Flange Mounted, Close On Rise, NEMA 7/9 (575V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$536.22 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Close on Rise
10 Amps
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
Closed Tank, Class 9037 Type E
Type E switches are flange mounted and float movement is transmitted through a QuadRing® seal. Build up the switch to meet your exact requirements from the basic switch, float rod, and float groups below. Switch may be assembled in the field to give contacts that open on liquid rise or close on liquid rise. Consult Schneider Electric for use in media with a different specific gravity than water.
Closed Tank, Class 9037 Type E
Type E switches are flange mounted and float movement is transmitted through a QuadRing® seal. Build up the switch to meet your exact requirements from the basic switch, float rod, and float groups below. Switch may be assembled in the field to give contacts that open on liquid rise or close on liquid rise. Consult Schneider Electric for use in media with a different specific gravity than water.
- Electrical Connections: Screw Clamp
- HP @ 1 Phase - 115V: 2
- Contact Form: DPST
- Max. Current: 600A
- HP @ 3 Phase - 115V: 3
- Operating Temp. Range: -22 Degrees to 220 Degrees F
- HP @ 1 Phase - 230V: 3
- NEMA Rating: 7/9
- Body Material: Steel
- Width: 7.60"
- Float Travel: 2-5/8"
- Max. Voltage: 575
- Item: Liquid Level Switch
- Conduit Size: 1/2"
- Height: 7.60"
- Float Position: Below
- Float Dia.: 3.63"
- Standards: UL, CSA
- Float Material: Stainless Steel
- Switch Function: Close On Rise
- Overall Length: 3.86"
Specs
–
| Switch Action: | Close on Rise |
|---|---|
| Max Voltage: | 575V |
| NEMA Rating: | 9 7 |
| Current (amps): | 600A |
| Poles: | 2 |
| Amperage: | 10 |
| Application: | Liquid Flow |
