Liquid Level Float Switch

Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged

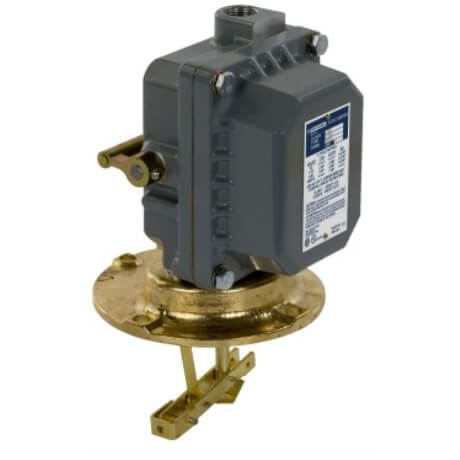

Note: Image may not be exact representation of item.

Schneider Electric / Square D Liquid level float switch features vertical mount. It operates at a temperature of -22 to 220 deg C. Switch body is made of high tensile aluminum material and measures 14.300 Inch x 7.600 Inch x 7.600 Inch. It features function close on rise operation. It operates at a voltage rating of 600 Volts and current rating of 10 Amps. It has a conduit of size 1/2-Inch. It comes with electrical screw clamp connection. Switch is UL listed and CSA certified.

Specifications:

• Item: Float Switch
• Material: Aluminum
• Mounting: Vertical Open Tank/Flange
• Float Position: Below
• Contact Configuration: DPST
• Connection: Screw Clamp Terminal
• Power Rating: 1 hp
• Operating Cycles: Mechanical Durability: 300, Electrical Durability: 100
• Operating Temperature: -22 to 200 deg F
• NEMA Rating: NEMA 4
• Brand Name: Schneider Electric / Square D
• Amperage Rating: 10 Amp
• Application: For Closed Tank Liquid Level Control
• Type: Type EW, Close On Rise, Liquid Level
• Voltage Rating: 600 Volt AC
• Standards: UL File No E12158, CSA File No LR25490
• Max. Current: 600A
• Max. Voltage: 600
• HP @ 1 Phase - 120V: 2
• HP @ 1 Phase - 240V: 3
• HP @ 3 Phase - 240V: 5
• Conduit Size: 3/4"
