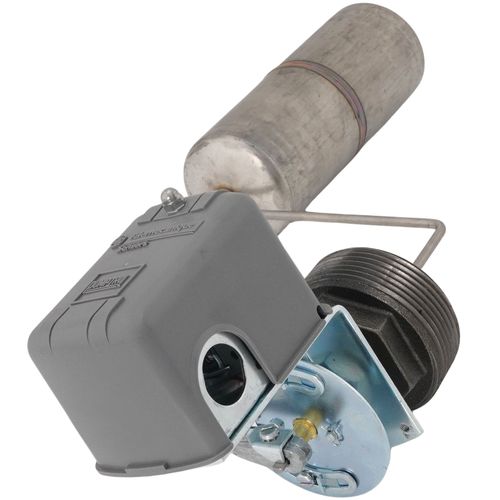

Liquid Level Switch w/ Bushing, Close On Rise, NEMA 1, Left Float Position (600V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$165.74 each
In Stock
Get 16 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Close on Rise
50 MAX PSI
10 Amps
Steel
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
- Float Material: Stainless Steel
- Electrical Connections: Screw Clamp
- Stem Material: Stainless Steel
- HP @ 1 Phase - 120V: 2
- Contact Form: DPST
- Max. Voltage: 600
- Max. Current: 600A
- Tank Connection Size: 2-1/2" MNPT
- Float Length: 7.13"
- HP @ 3 Phase - 240V: 5
- Max. Pressure: 50 psi
- Operating Temp. Range: -22 Degrees to 220 Degrees F
- Item: Tank Liquid Level Switch
- HP @ 1 Phase - 240V: 3
- Float Dia.: 2.58"
- Overall Length: 16.06"
- NEMA Rating: 1
- Body Material: Steel
- Width: 11.3"
- Standards: UL, CSA
- Includes: Rod and Float
- Float Travel: 6-1/4"
- Height: 5.98"
- Conduit Size: 3-1/2"
- Stem Length: 5.07"
- Float Rod Angle: 90 Degrees
- Float Position: Left
- Switch Function: Close On Rise
Specs
–
| Switch Action: | Close on Rise |
|---|---|
| Max Voltage: | 600V |
| NEMA Rating: | 1 |
| Max Pressure (PSI): | 50 |
| Current (amps): | 600A |
| Poles: | 2 |
| Amperage: | 10 |
| Material: | Steel |
| Float Travel: | 6-1/4" |
| Tank Connection: | 2-1/2" MNPT |
| Application: | Liquid Flow |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Condensate Tank Liquid Level Switch
Works as expected. Water level rises and the switch turns on the condensate pump to return the water back to the boiler.
Jim B
NY
1 years ago
Verified Buyer
Was this review helpful to you?
Would buy again
Easily replaced and fit perfect
Rockhead
Dubuque Iowa
3 years ago
Verified Buyer
Was this review helpful to you?
