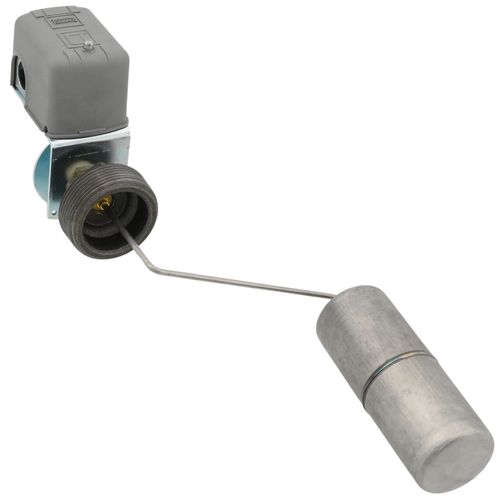

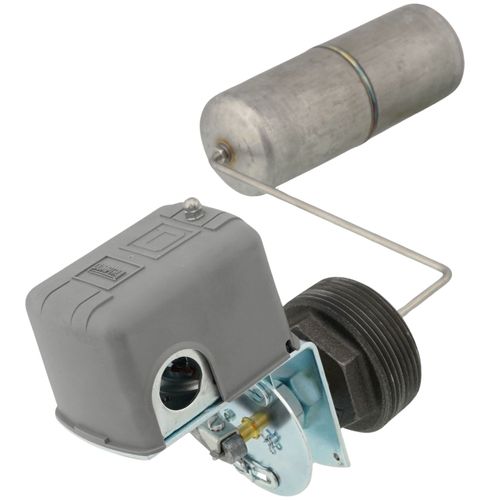

2-1/2" NPT Liquid Level Float Switch, Close on Rise (575V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$203.03 each
In Stock
Get 15 Tomorrow, Jun 18
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Close on Rise
Threaded Connection
50 MAX PSI
10 Amps
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
- Close On Rise
- Mounting: Side
- Float Position: Left Float
- Rod Angle: 90 Degrees
- Float Travel: 4-1/2"
- Tank Connection Size: 2-1/2" MNPT
- NEMA Rating: 1
- Contact Form: DPST
- Operating Temp. Range: 250 Degrees F Max
- Max. Pressure: 50 psi
- Overall Length: 16.06"
- Float Material: Stainless Steel
- Float Length: 7.13"
- Float Dia: .2.58"
- Stem Material: Stainless Steel
- Stem Length: 4.37"
- Height: 5.98"
- Width: 2.88"
- Max. Current: 600A
- Max. Voltage: 600
- HP @ 1 Phase - 120V: 2
- HP @ 1 Phase - 240V: 3
- HP @ 3 Phase - 240V: 5
- Body Material: Steel
- Conduit Size: 3-1/2"
- Electrical Connections: Screw Clamp
- Features: Viton Packing, Suitable for Applications Up To 250 Deg
- Includes: Viton Packing - Rod and Float
Specs
–
| Switch Action: | Close on Rise |
|---|---|
| Connection Type: | Threaded |
| Max Pressure (PSI): | 50 |
| Max Voltage: | 600 |
| Poles: | 2 |
| Amperage: | 10 |
| Tank Connection: | 2-1/2" MNPT |
| Application: | Liquid Flow |
