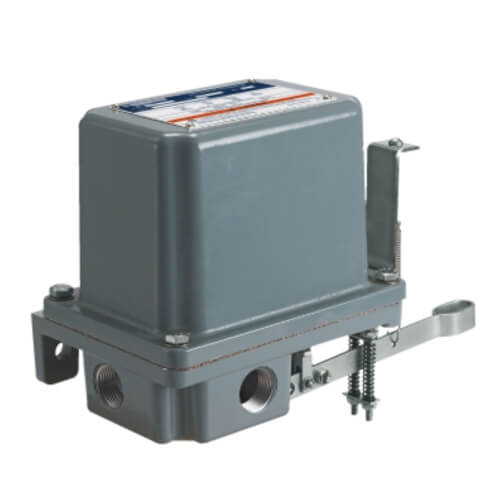

Pumptrol Mechanical Alternator, Open Tank, NEMA 4, Pedestal Mounted, 4 NC DPST-DB Contacts
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$549.30 each
Backorder
Get it Wed, Aug 5 - Wed, Sep 2
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
- Range of product: Pumptrol
- Product Type: Mechanical alternator
- Device Application: Open Tank
- Device Short Name: 9038A
- Product Specific Application: Mechanically alternating the operation of two pumps or motors
- Electrical Circuit Type: Power circuit
- Device mounting: Pedestal
- Cable entry number: 2 conduit entries for 3/4"-14 NPT UL 508
- Contacts Type: 4 NC, snap action, DPST-DB, Form YY
- Controlled Fluid: Fresh water specific gravity of 0.85 in or higher, Sea water specific gravity of 0.85 in or higher, Hydraulic oil specific gravity of 0.85 in or higher, Corrosive fluid specific gravity of 0.85 in or higher
- Electrical Connection: Screw-clamp terminals 10 AWG
- Contact Operation: Contacts close on liquid rise
- Movement Variable adjustable
- Float position: Any
- Float rod angle: Vertical
- Short-circuit protection: 20 A cartridge fuse gG
Specs
–
| Switch: | DPST |
|---|
