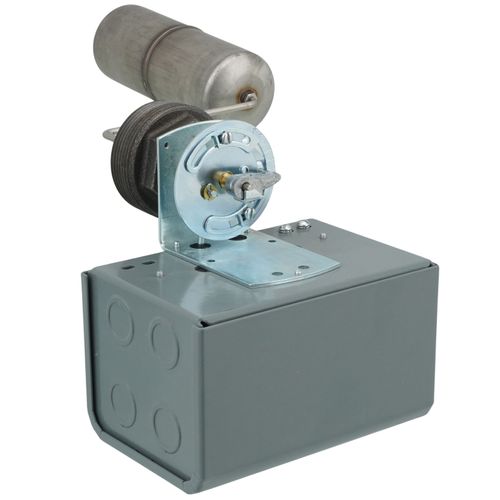

Main product image of Alternator Liquid Level Switch w/ Viton Packing, Rod & Float, Close on Rise, NEMA 1, Left Float Position (600V)
Magnifying glass
Hover image to zoom

Alternator Liquid Level Switch w/ Viton Packing, Rod & Float, Close on Rise, NEMA 1, Left Float Position (600V)

Brand:
Telemecanique (Square D)
SKU:
9038CG36Z20
Rating:
(0)
Q&A:
(0)
Alternator Liquid Level Switch w/ Viton Packing, Rod & Float, Close on Rise, NEMA 1, Left Float Position (600V)
Magnifying glass
Hover image to zoom
$514.03 each
In Stock
In Stock
Get 4 Tue, Jun 30
Order by today, receive Tuesday

MANUALS (3)

Brochure
Specification Sheet
Install Instructions
Brochure
Specification Sheet
Install Instructions
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Switch Action
Close on Rise
Product Highlight: Max Pressure (PSI)
50 MAX PSI
Product Highlight: Material
Steel

Description

–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged

  • Water Level Change: 4.75" - 9.25"
  • Electrical Connections: Screw Clamp
  • NEMA Rating: 1
  • Stem Material: Stainless Steel
  • Switch Function: Close On Rise
  • HP @ 1 Phase - 120V: 2
  • Contact Form: DPST
  • Max. Voltage: 600
  • Max. Current: 600A
  • Tank Connection Size: 2-1/2" MNPT
  • HP @ 3 Phase - 240V: 5
  • Max. Pressure: 50 psi
  • Body Material: Steel
  • HP @ 1 Phase - 240V: 3
  • Features: Viton Packing, for Media Temperature Up To 250 F
  • Includes: Viton Packing - Rod, Float
  • Conduit Size: 8-1/2", 8-3/4"
  • Height: 7.25" Stem Length: 4.0"
  • Float Rod Angle: 90 Degrees
  • Float Position: Left
  • Operating Temp. Range: -22 Degrees to 220 Degrees F
  • Overall Length: 6.84"
  • Float Material: Stainless Steel
  • Float Travel: 4-1/2"
  • Width: 6.69"
  • Float Length: 7.00"
  • Item: Tank Liquid Level Switch
  • Float Dia.: 2.50"

Specs

–
Switch Action:

Close on Rise

Max Voltage:

600V

NEMA Rating:

1

Max Pressure (PSI):

50

Current (amps):

600A

Float Travel:

4-1/2"

Material:

Steel

Tank Connection:

2-1/2" MNPT

Features:

Viton Packing

Includes:

Rod & Float

Application:

Liquid Flow
