$97.90 each
In Stock
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–

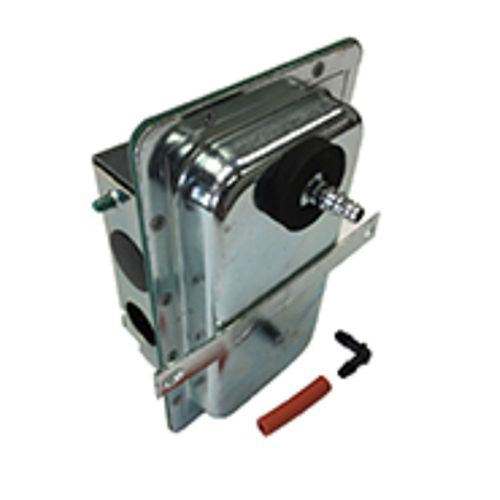

The PS1503 Duct Airstat switch is designed to sense the positive pressure increase in a supply plenum or duct when an air handler or furnace blower is in operation. The increased duct pressure expands a diaphragm which in turn mechanically closes the
normally open electrical switch contacts to activate accessories in tandem with the central blower. Typical accessory devices activated include duct booster fans, furnace mounted humidifiers, UV air purification units and duct heaters.
Specifications:
Specifications:
- Electrical Ratings: 300 VA Pilot Duty @ 120 to 277 VAC (Duct Booster, Humidifier)
- 15 Amps Non-Inductive to 277 VAC (Duct Heater, UV Air Purifier)
- Electrical Switch: SPST, Normally Open, Non Adjustable
- Operating Position: Diaphragm must be vertical
- Operating Pressure: (+.05 + .02" W.C.)
- Operating Temperature Range: -40 to 180oF.
- Maximum Pressure: 1/2
- PSI Dimensions: 5.75" x 4.5" Across Bracket, 2.75" High
- Listings: CE, CSA, UR
