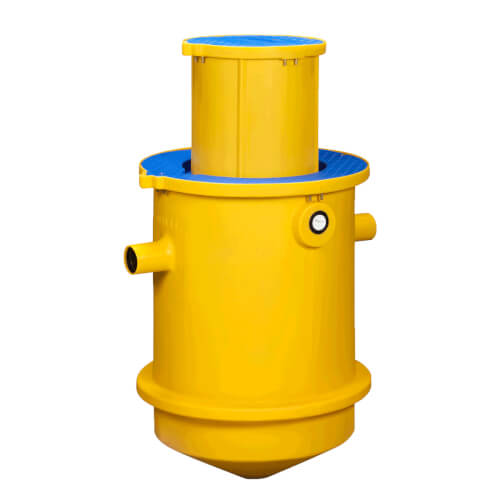

Trapzilla Solids Separator, 4" Inlet/Outlet, 18" Extension Collar, 95 Gallon Solids Capacity (150 GPM)

Overview
The TSS-95-ECA In-Ground Trapzilla Solids Separator is designed to be a compact solids separator capable of retaining high volumes of solids. Ideally, a TSS-95-ECA Trapzilla Solids Separator would be installed in conjunction with a TZ-600-ECA or TZ-1826-ECA Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency. In-Ground Trapzilla Solids Separator Models come with an Extension Collar Adapter Ring lid, 18" long Single-Piece Extension Collar and a 22" Solid Top Cover that can be removed easily to clean out retained solids.

Thermaco Trapzilla Model No. TSS-95-ECA, rotationally molded poly- ethylene solids separator(s) for in-ground installation, rated at 150 gallons per minute (9.46 l/s) peak flow, 95 gallons (359.61 l) of solids storage capacity, fully removable cover for vacuum ac- cess by pump truck for solids removal, and including as an integral part of the unit a vessel vent. Includes one extension collar assembly, linear low-density rotationally molded polyethylene in two pieces for field adjustability to optimal installation depth.

Features:

• Constructed of corrosion resistant materials suitable for installation in virtually any location.
• Compact footprint.
• Baffle structure retains separated solids permitting flow of grease, oil, and water.
• Included lid rated for foot-traffic only.
• Includes one ECALA-TSS-18 Extension Collar Adapter Lid Assembly for in-ground installation.

Specifications:

• Manufacturer Rated Inlet Flow Rate: 150 GPM (9.46 l/s)
• Solids Retention Capacity: 95 Gallons (359.61 l)
• Material: Rotationally Molded Polyethylene
