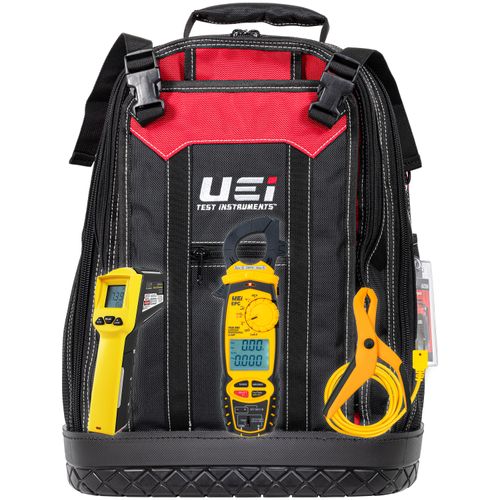

HVAC Clamp Meter Kit w/ ATTPC4, EPC, INF165C and AC550 Backpack

The UEi HVACKIT combines the most commonly used test instruments in a convenient foam lined carrying case, protecting the instruments while keeping them readily available for testing needs. includes EPC Everyday Professional Clamp meter, INF165C infrared thermometer, ATTPC4 compact K-Type pipe clamp, and AC550 tool backpack.

The EPC is safety rated for 400A at CAT IV 600V / CAT III 1000V. It features AC/DC Volts, LRA Inrush, temperature, capacitance, duty cycle, AC amps, DC microamps, frequency via leads, non-contact voltage, resistance, continuity, and diode testing.

The ATTPC4 is a wired K-Type pipe clamp with a thermally isolated probe to protect readings from ambient temperatures. Its tough and compact design allows you to make secure connections in workspaces with tight clearances.

The INF165C infrared thermometer features a unique circular laser pattern with a 12:1 distance-to-spot ratio. It also covers the HVAC essential temperature range for reliable remote testing with selectable emissivity and a maximum value capture.

HVACKIT is backed by a 1-Year limited warranty.

Applications:

• Motor or line current
• Control voltage or system board voltage checks
• Circuit continuity or specified resistance
• Motor run or start faults
• Ambient or surface temperatures
• Flame safe guard
• Variable speed drives & supply power

Includes:

• DL579 600A True-RMS Dual Display HVAC/R Clamp Meter w/ Temperature & Capacitance
• INF165C 12:1 Infrared Thermometer
• ATTPC4 Pipe Clamp Adapter
• AC73 Carrying Case
