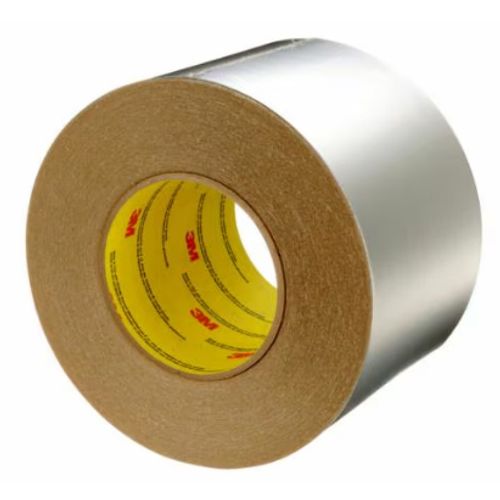

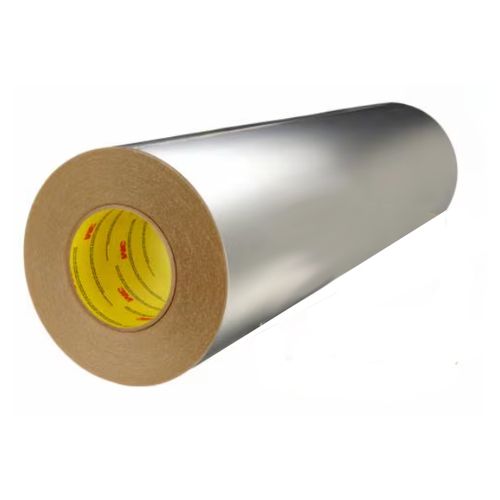

Enhanced Metal Jacketing Tape - (23" x 150')

3M_ VentureClad_ Enhanced Metal Jacketing 1577CW-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier. The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver smooth.

Features & Benefits:

• Quick and simple install with no specialized tools.
• Highly resistant to punctures and tears.
• Bonds and seals in cold, hot and humid conditions as low as -10_F (-23_C) with service range of -40_F (-40_C) to248_F (120_C)
• Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
• Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
• Greenguard Gold Certified-Qualifies for LEED_credits
• Achieve a clean look with no sharp edges, fastenersor banding

Specifications:

• Adhesive Type: Acrylic
• Application :Ductwork, Exterior Seams & Joints, HVAC Maintenance, Insulation, Sealing HVAC & Duct Work
• Backing (Carrier) Thickness (Imperial): 5 mil
• Backing (Carrier) Thickness (Metric): 0.13 mm
• Backing Material: Multi-layered laminate
• Industries: Commercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military & Government
• Maximum Operating Temperature (Celsius): 120 deg C
• Maximum Operating Temperature (Fahrenheit): 248 deg F
• Minimum Operating Temperature (Celsius): -40 deg C
• Minimum Operating Temperature (Fahrenheit): -40 deg F
• Primary Liner: Polycoated Natural Kraft Paper
• Product Color: Silver
• Shelf Life: 24 Month
• Specifications Met: ASTM E84 (0/5 Flame/Smoke Rating), UL 723
• Tensile Strength (Imperial): 100.0 lb/in
• Tensile Strength (Metric): 27 N/25mm
• Total Tape Thickness without Liner (Imperial): 7 mil
• Total Tape Thickness without Liner (Metric): 0.177 mm
• eClass 14 Classification Group: 27140708
