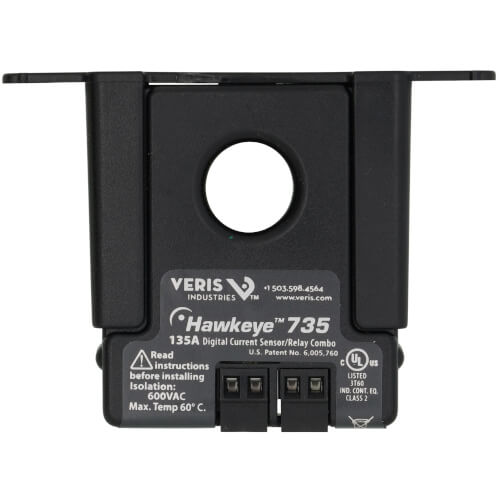

Hawkeye Adjustable Solid Core Current Switch w/ 24 VAC/VDC SPST Relay, 1 - 135A

The Hawkeye relay combination series is the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The current switch and relay operate independently of one another. These devices allow start/stop control and status monitoring with one device instead of two

Features:

• Combined relay and status - combines command relay and fan/pump status sensor in a single, easy-to-install unit
• Fan and pump status - detect belt loss and motor failure ideal for fan and pump status
• Polarity insensitive status outputs - fast and easy installation
• Two outputs - feature a SPDT command relay control two outputs with a single relay
• Easy setup - relay and status LEDs
• Induced from monitored conductor sensor power

Specifications:

• Application: Building Automation Systems
• Current Measurement Range: 1 - 135 A
• Current Sensor type: Current Switch, AC
• Electrical Wiring Size: 24 - 14 AWG (0.2 - 2.1 mm²)
• Measurement Type: AC Current
• Model: H735
• Monitored Frequency Range: 50 - 60 Hz
• Monitored Wire Size: 0.7" (18 mm)
• Mounting: Solid Core
• Operating Humidity: 10 - 90% RH, non-condensing
• Operating Temperature: 5 - 140 °F (-15 - 60 °C)
• Output Specifications: N.O. 1 A @ 30 VAC/DC
• Outputs: Switch output | Relay
• Product Certification: UL
• Product Type: Sensor
• Range: HX35 Series
• Relay Coil Voltage: 24 VAC/DC
• Relay Construction: Mechanical
• Relay Contact Ratings: Resistive: 5 A @ 250 VAC | Resistive: 5 A @ 30 VDC | Inductive:
• 3 A @ 250 VAC | Inductive: 3 A @ 30 VDC
• Relay Poles/Throw: SPST
• Setpoint : Adjustable
• Warranty: 5 years
