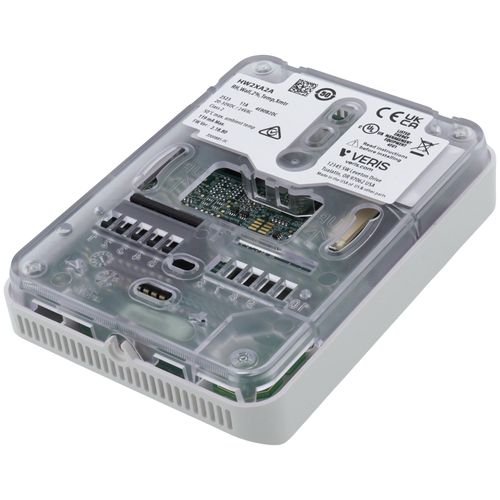

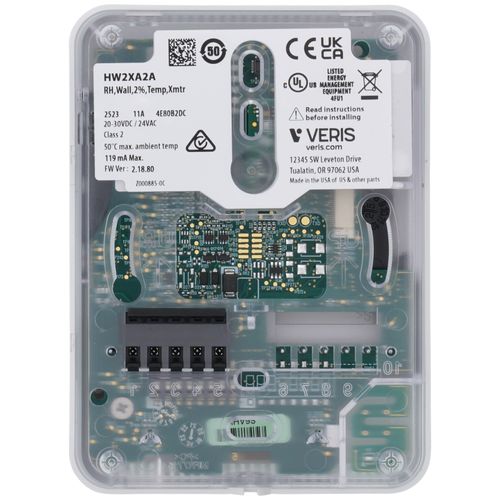

Standard Wall Humidity Sensor, 2% Accuracy, Temp Transmitter

The Veris HW2 Series of humidity sensors for living space is a flexible multi-sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. HW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all HW2 Series sensors

Product Features

• Humidity Measurement Accuracy: +/-2% from 10 to 80% RH @ 25 Deg C (77 Deg F)
• Outputs: Analog
• Output Specifications: Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V
• Temperature Sensor Type: Solid state, integrated circuit
• Setpoint: No
• Override: No
• Color: Matte White
• Electrical Wiring Size: Screw terminals, 18-24 AWG
• Enclosure Material: High impact ABS plastic
• Humidity Measurement Range: 0 to 100% RH
• Humidity Measurement Resolution: 0.1% RH
• IP Protection: IP20
• Measurement Type: RH / Temperature
• Operating Humidity: 0 to 95% RH non-condensing
• Operating Temperature: 0 to 50 Deg C (32 to 122 Deg F)
• Temperature Measurement Accuracy: +/-20.2 Deg C ( +/-0.4 Deg F) typical
• Temperature Measurement Range: 0 to 50 Deg C (32 to 122 Deg F)
• Temperature Measurement Resolution: 0.1 Deg C (0.1 Deg F)
• Warranty: 5 Years
• Humidity Sensor Type: Thin-film capacitive, replaceable
• Input Specifications: Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
• Standards EMC: EN61000 Series - industrial immunity
