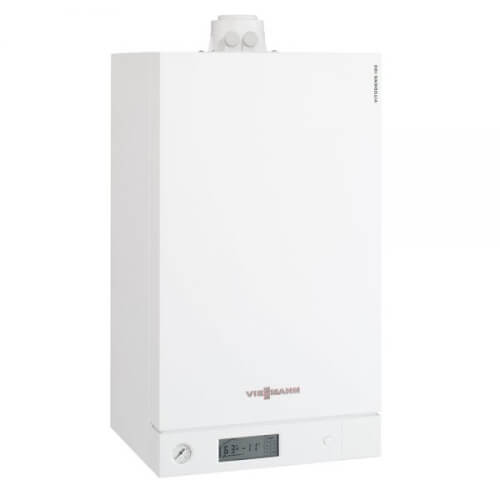

B1KA 125,000 BTU Vitodens 100-W Gas-Fired Wall-Mounted Condensing Combi Boiler
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
B1KA111 has been discontinued
Discontinued March 11, 2024
This product was discontinued by the manufacturer.
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
–
125000 Max BTUs
Natural Gas
Hydronic (Water)
Description
–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.
Rebates:
This product qualifies for a federal tax rebate of up to $600. Federal Rebate click for more info
Gas-fired wall-mounted condensing boiler with modulating stainless steel cylinder burner and Inox-Radial heat exchanger surface.
Features:
Rebates:
This product qualifies for a federal tax rebate of up to $600. Federal Rebate click for more info
Gas-fired wall-mounted condensing boiler with modulating stainless steel cylinder burner and Inox-Radial heat exchanger surface.
Features:
- All the benefits of a Vitodens 100-W boiler, plus built-in on-demand domestic hot water (DHW) – no need for an additional storage tank
- DHW at the snap of your fingers all day long! Up to 3.5 GPM†
- Optimized load matching with up to 6:1 turndown ratio
- Energy-saving and low-cost, on-demand indirect-fired DHW production
- Conforms to NSF/ANSI 372 for Low Lead Content
- Quality you can count on! Stainless steel heat exchanger, built-in pressure bypass and 150 psig working pressure rating (on DHW side only)
- Reliable and consistent DHW supply with built-in DHW temperature and flow sensors
- Complete space / DHW heating management by boiler control, powerful built-in 3-speed pump and diverting valve
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Efficiency: | 95% |
| BTU Output: | 125000 |
| BTU (Max): | 125000 |
| BTU (Min): | 21000 |
| Gas Connection: | 3/4" |
| System Type: | Hydronic (Water) |
| Features: | Combo DHW Wall Mounted Condensing |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Need help calculating?
Use Our Calculator108 Replacement Parts
Air Vent (Caleffi) CPK / B2Tx, 7828750
SKU: 7828750
ViessmannAir Intake Cover, 7827389
SKU: 7827389
ViessmannGas Ball Valve, 3/4" Brass, 7134783
SKU: 7134783
ViessmannFlow Regulator, 7828754
SKU: 7828754
ViessmannHarness X21, 7844677
SKU: 7844677
ViessmannBypass Cartridge, 7828756
SKU: 7828756
ViessmannClip D=8 (5 Pcs), 7827425
SKU: 7827425
ViessmannClip D= 8 (Set of 5), 7828758
SKU: 7828758
ViessmannClip D=10 (Set of 5), 7828759
SKU: 7828759
ViessmannCover Panel, boiler, 7835607
SKU: 7835607
ViessmannO-Ring (Set of 5, 8x2) B2, 7831409
SKU: 7831409
ViessmannCondensate Pipe, 7855454
SKU: 7855454
Viessmann
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-2 of 2 reviews
Great efficiency and great engineerin
I installed the previous model W1B1 with the CombiPlus, basically the same arrangement with DHW before Viessmann mad it one unit. I use Tekmar multi-zone controls for multiple radiator and radiant heat zones. Modulating the Vitodens boiler through a 0-10 V interface. Works great. Love the boiler. I wish Viessmann would make a 150 k BTU version, I could use the extra energy on single digit days..
Tom154
NY
7 years ago
Was this review helpful to you?
So far so good
I have had the B1KA combi boiler for about a year now. I am very impressed so far with the performance. It took a little bit to figure out the heat curve, but once that was set it has worked great. I like that my DWH and space heating are all in one compact unit. The unit uses the outdoor temperature sensor to decide the amount of heat it needs to put into your system to keep the temperature at your setpoint depending on outside conditions. This increases efficiency. This is so much better than my old Munchkin boiler.
Aaron
Michigan
7 years ago
Was this review helpful to you?
