Overview:

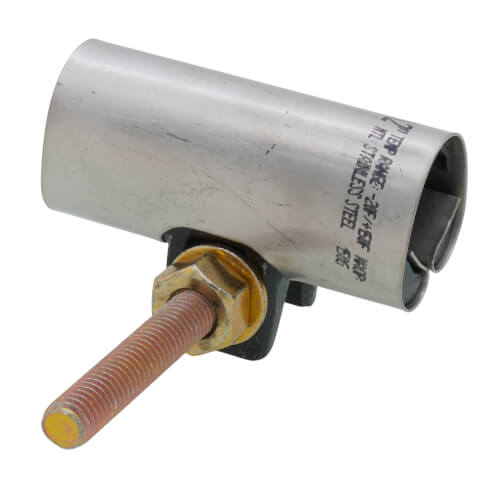

The Dresser Style 118 Handiband™ Clamp is a field-proven, low cost bandtype
repair clamp for quick repair of small leaks and holes in steel piping.
Installation is fast, easy and foolproof. Simply wrap the clamp around the pipe,
drop the bolts through the slotted lugs and tighten the nuts. Compression of the
large size gasket seals the leak completely and permanently.
The Handiband clamp is made of stainless steel for corrosion resistance. The
Dresser rubber compound gasket offers superoior resistance to oils, aromatic
and aliphatic hydrocarbons, gasoline and condensates.
Materials of Construction:
- Band: Stainless Steel 18-8, Type 304
- Lugs: Ductile Iron ASTM 536
- Bolts & Nuts: Alloy to ANSI A21.11
- Gasket: Gridded to Dresser Specs
