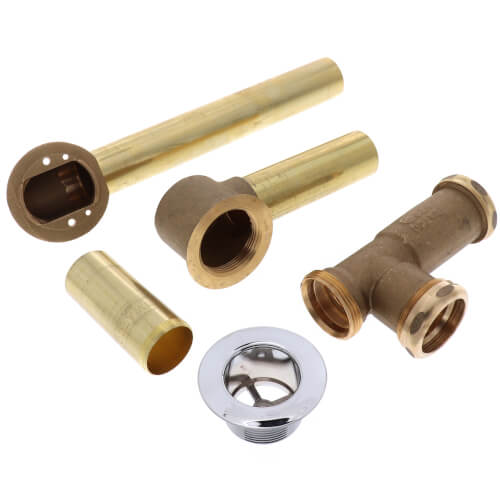

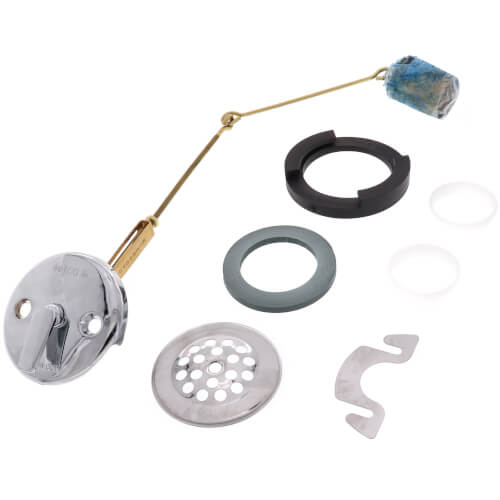

501 Quick Adjust Tubular Brass Trip Lever Bath Waste (Chrome Plated)

The Watco 501 Bath Waste is a sturdy 1.5 in. 17g and 20g Tubular Brass Slip-Joint Assembly, featuring the SLIP LOCK device, which automatically sets drop cylinder, a metal strainer body for cast iron or plastic tubs, and a retainer plate for overflow elbow. Watco products are the Choice of Professionals.

Features:

• Designed for heavy-duty use in hotels, motels, and rental property
• ADA compliant

Approvals:

• Manufactured in compliance with ASME A112.18.2-2005/CSA B125.2-2005; and TIL MSE-051

Operation:

• Move trip lever, located on overflow plate; up to close drain and down to open drain

Thread Size (Strainer Body and Drain Ell):

• 1-1/2"-11-1/2" NPSM (Coarse Thread)
• 1.865" Major Diameter (Outside Thread Diameter)
• 11.5 threads per inch
