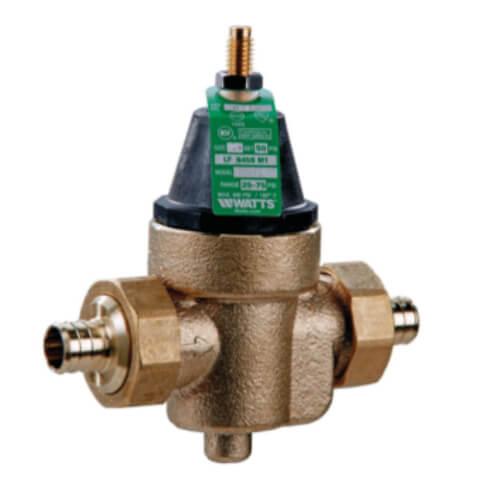

3/4" LFN45BM1-DU-PEXxPEX Water Pressure Reducing Valve, Lead Free (Double Union PEX Crimp)

This 3/4" lead free water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead fee cast copper silicon alloy body, integral stainless steel strainer and thermal expansion bypass. It features double union PEX end connections. The maximum working pressure is 400 psi (27.6 bar), and may be adjusted from 25 to 75 psi (172 to 517 kPa). The standard setting is 50 psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line.

Features:

• Double union inlet and outlet NPT connections
• Lead free body construction
• Thermoplastic seat and cage
• Integral stainless steel strainer removable for cleaning
• Sealed spring cage for accessible outdoor or pit installations
• Bypass feature controls thermal expansion pressure
• PEX union inlet and outlet
