Description

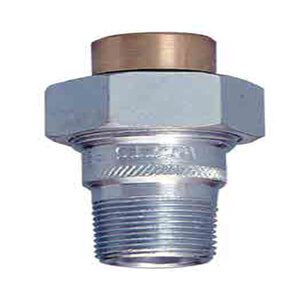

This 3/4 inch lead free dielectric union is used to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is used in commercial and residential applications, and is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a male iron pipe thread to solder connections, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 degrees F (82 degrees C) at 250 psi (17.2 bar).

Features:
  • MIP thread to solder connections
  • Maximum pressure is 250 psi (17.2 bar)
  • Maximum temperature 180 degrees F (82 degrees C)
  • Buna-N gasket

Specifications:
  • Adapter Material: Steel
  • EANUCCCode: 098268430264
  • Gasket Material: Buna-N
  • Gasket Maximum Pressure: 250 PSI
  • Gasket Maximum Pressure-BAR: 17.20
  • Gasket Maximum Temperature: 180 Degree F
  • Inlet Connection Size: 3/4"
  • Inlet Connection Size-Metric: 20 MM
  • Inlet Connection Type: Male Threaded
  • Inlet Material: Steel
  • Inlet Thread Type: NPT
  • Insulator Material: Polysulfone
  • Lead Free: YES
  • Maximum Working Pressure-PSI: 250
  • Maximum Working Temperature-Fahrenheit: 180
  • Nut Material: Steel
  • Outlet Connection Size: 3/4"
  • Outlet Connection Type: Socket
  • Outlet Material: Lead Free Brass
  • Series: LF3005A
  • 600V
  • Type: Kit
Read more
Manuals (1)
Specs
Product Type:
Dielectric Union
Size:
3/4"
Material:
Brass
Steel
Thread Type:
Male
Sweat
Voltage:
600v
Lead Free:
Yes
×
