Description

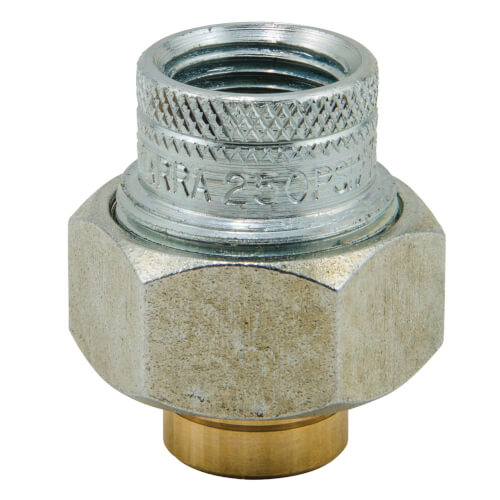

This 3/4 inch lead free dielectric union is used to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is appropriate for use in commercial and residential applications. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to reduced solder connection, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 degrees F (82 degrees C) at 250 psi (17.2 bar).
Features:
Specifications:
Features:
- Buna-N gasket
- Maximum temperature 180 degrees F (82 degrees C)
- Designed and manufactured to the highest quality standards
- Individually factory certified to withstand a minimum of 600 volts on a dry line with no flashover
- Maximum pressure is 250 psi (17.2 bar)
- FIP thread to reduced solder connections
- Meets federal specifications for tensile strength and thread end connections
Specifications:
- Adapter Material: Steel
- EANUCCCode: 098268430271
- Gasket Material: Buna-N
- Gasket Maximum Pressure: 250 PSI
- Gasket Maximum Pressure-BAR: 17.20
- Gasket Maximum Temperature: 180 Degree F
- Inlet Connection Size: 3/4"
- Inlet Connection Size-Metric: 20 MM
- Inlet Connection Type: Female Threaded
- Inlet Material: Iron
- Inlet Thread Type: NPT
- Insulator Material: Polysulfone
- Lead Free: YES
- Maximum Working Pressure-PSI: 250
- Maximum Working Temperature-Fahrenheit: 180
- Nut Material: Steel
- Outlet Connection Size: 1/2"
- Outlet Connection Type: Socket
- Outlet Material: Lead Free Brass
- 600V
- Series: LF3002
