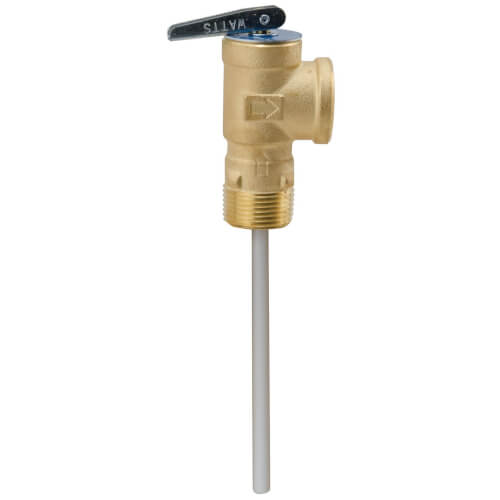

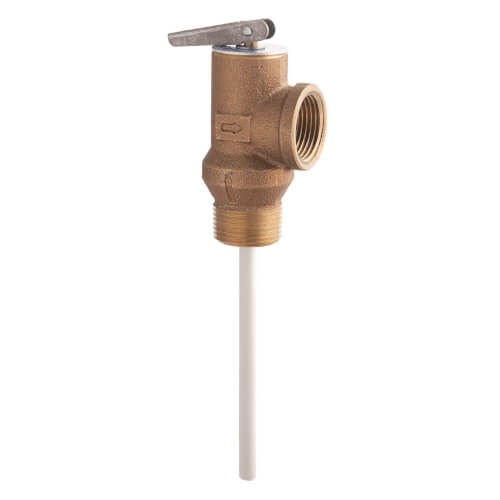

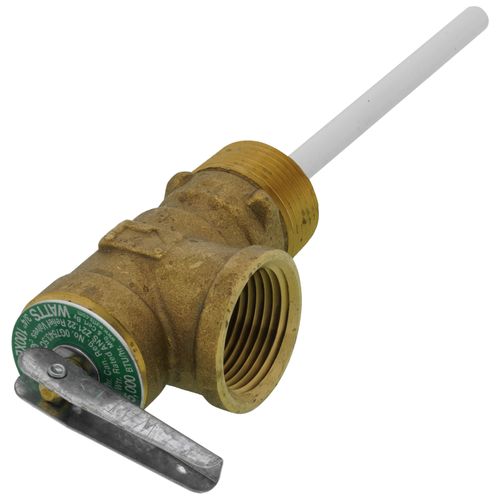

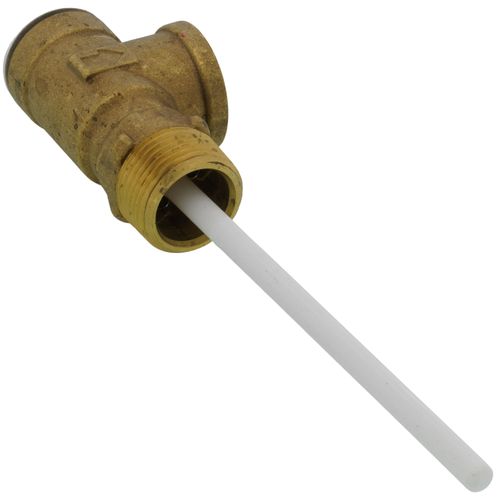

100XL-100210 3/4" Temperature & Pressure Relief Valve, 3" Thermostat Probe Length
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$48.13 each
Backorder
Get it Fri, Dec 29 - Mon, Jan 29
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
Brass
210°F Max
Description
–
This 3/4" temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. It is ASME rated and CSA listed. The temperature relief is at 210 degrees F (99 degrees C), and the pressure relief is 100 psi (7.0 bar).
Features:
Features:
- Temperature relief 210 degree F (99 degree C)
- Temperature and pressure relief valve to protect the heater from excessive pressure and temperature
- Unique thermostat with special thermo-bonded coating
- ASME rated and CSA listed
Specs
–
| Application: | Heating |
|---|---|
| Material: | Brass |
| Size: | 3/4" |
| Temperature Range (F): | 210°F Max |
| CSA Rating (BTU/HR): | 105000 |
