0066100 has been discontinued
Discontinued January 12, 2024
This product was discontinued by the manufacturer.
MANUALS (1)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Direct Replacement:
LF100XL-4 3/4" Lead Free Self Closing T & P Relief Valve
Product Highlights
–
3/4"
MNPT
FNPT
150 psi
105000 BTU Capacity
Bronze
Description
–

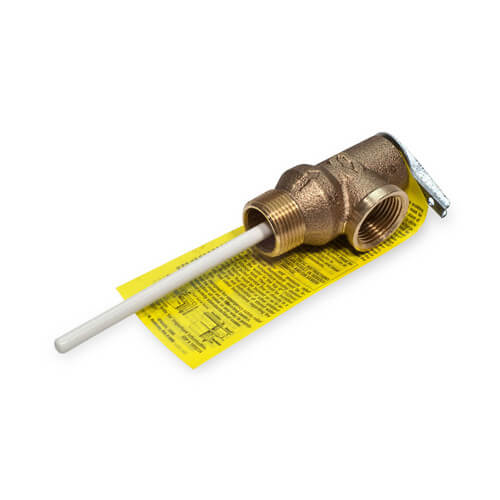

\Series 100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 100,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever.
- Model 100XL-8 is also available with 8" (200mm) extension thermostat.
- Series 100XL is ASME rated and CSA listed. Temperature Relief: 210°F (99°C),
- Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar),
- Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Specs
–
| Application: | Heating |
|---|---|
| Material: | Bronze |
| Pressure Set Point: | 150 psi |
| Size: | 3/4" |
| Thermostat Length: | 4" |
| Connection Type: | Threaded |
| Thread Type: | Female Male |
| Inlet Type: | MNPT |
| Outlet Type: | FNPT |
| Temperature Range (F): | 210°F Max |
| Width: | 1-3/4" |
| Height: | 7-1/2" |
| Capacity (BTU): | 105000 |
| CSA Rating (BTU/HR): | 105000 |
| Capacity: | 105000 BTU/hr |
| Weight: | 12 oz |
| ASME: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4.4 out of 5 reviews
100% would recommend this product
5 star
60%
4 star
20%
3 star
20%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
OEM!!!
This product is a direct OEM replacement! Fits perfectly, and the leaks have stopped! Well, for now, I still need to get a Pressure Reducing Valve (PRV) installed, but I am very satisfied with the quality and fitment of the product. Highly recommend, and PEX Supply had it at the best price!
Worker Bee
Atlanta, GA
13 years ago
Verified Buyer
Was this review helpful to you?
Great work!
A trusted name that is performing as expected.
Blade
Londonderry, NH
13 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Will buy again
We will use this T &P Valve in Gas water heaters
it is very nice product
M Hanif Ghanchi
Pakistan
14 years ago
Verified Buyer
Was this review helpful to you?
good part
my previous one was leaking and bought this one, and installed it a few days ago. so far it's working. Nothing to complain.
Jack L
Morris county, NJ
15 years ago
Verified Buyer
Was this review helpful to you?
Standard product[...]
Should come with clear instructions about testing and replacement. And not changing specifications for particular use
Harry Smith
Bergen County New Jersey
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Is the pressure limit adjustable on the 100XL Relief Valve? How is it adjusted?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve is not adjustable.
Was this review helpful to you?
- M Hanif Ghanchi
Can not adjust pressure as it is pre set
Was this review helpful to you?
