$36.25 each
In Stock
Get 119 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
This item replaces: 0066100
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
MNPT
FNPT
150 psi
Bronze
Threaded Connection
Description
–
Temperature Relief: 210°F (99°C)
Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar)
Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).

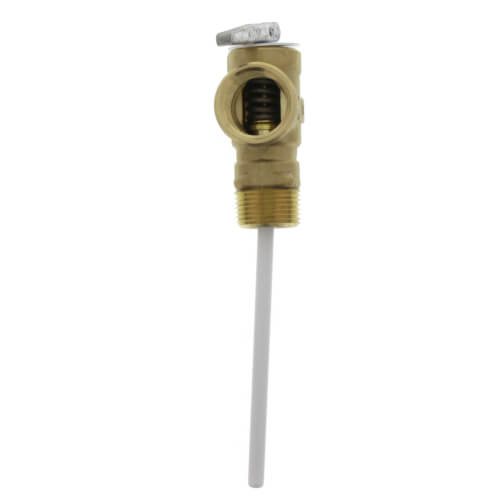

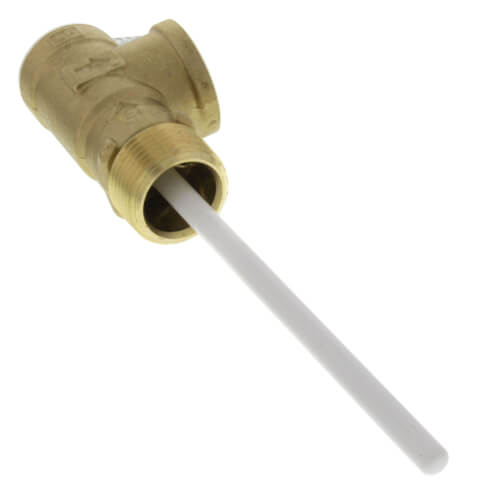

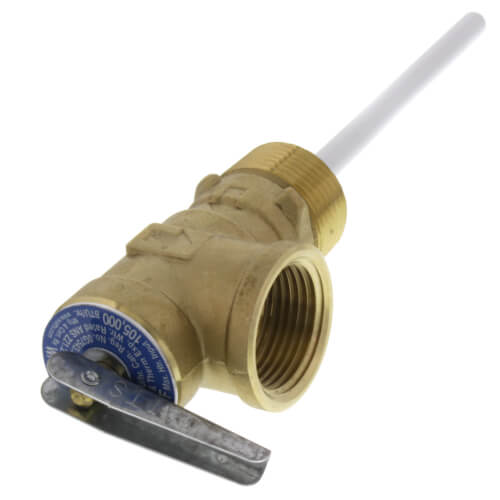

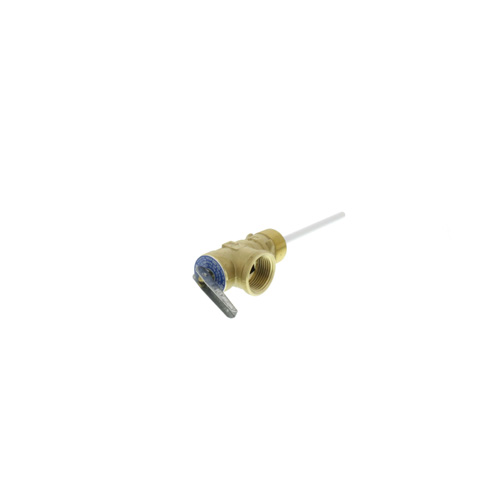

Series LF100XL Lead Free Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 100,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 in. (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed.
Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar)
Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Series LF100XL Lead Free Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 100,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 in. (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed.
Specs
–
| Application: | Heating |
|---|---|
| Material: | Bronze |
| Pressure Set Point: | 150 psi |
| Size: | 3/4" |
| Thermostat Length: | 4" |
| Connection Type: | Threaded |
| Thread Type: | Male Female |
| Inlet Type: | MNPT |
| Outlet Type: | FNPT |
| Temperature Range (F): | 210°F Max |
| Width: | 1-3/4" |
| Height: | 7-1/2" |
| CSA Rating (BTU/HR): | 105000 |
| Weight: | 12 oz |
| ASME: | Yes |
| Lead Free: | Yes |
