$101.18 each
Backorder
MANUALS (1)
This item replaces: 0063093
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
MNPT
FNPT
125 psi
Bronze
Threaded Connection
Description
–

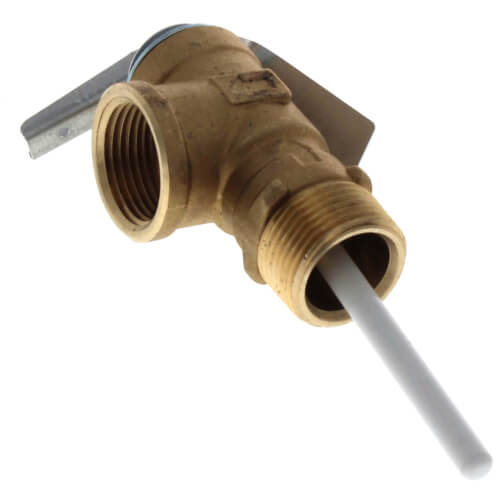

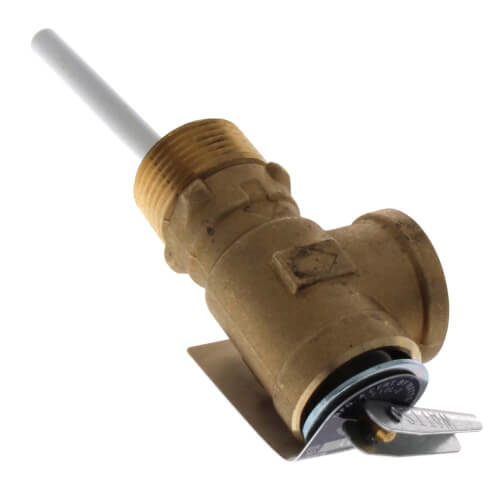

Model 10L Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 80,000 BTU/hr. It features a bronze body with NPT threaded male inlet and NPT threaded female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. Model 10L is ASME rated and CSA listed.
Specs
–
| Application: | Heating |
|---|---|
| Material: | Bronze |
| Pressure Set Point: | 125 psi |
| Size: | 3/4" |
| Connection Type: | Threaded |
| Thread Type: | Female Male |
| Inlet Type: | MNPT |
| Outlet Type: | FNPT |
| Width: | 1-3/4" |
| Temperature Range (F): | 210°F Max |
| CSA Rating (BTU/HR): | 80000 |
| Weight: | 10 oz |
| Thermostat Length: | 2" |
| ASME: | Yes |
| Lead Free: | Yes |
