Description

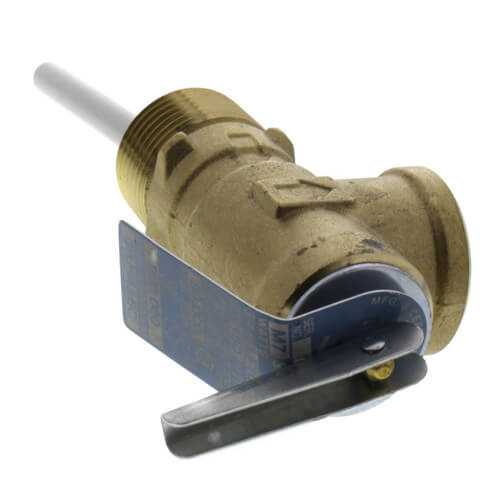

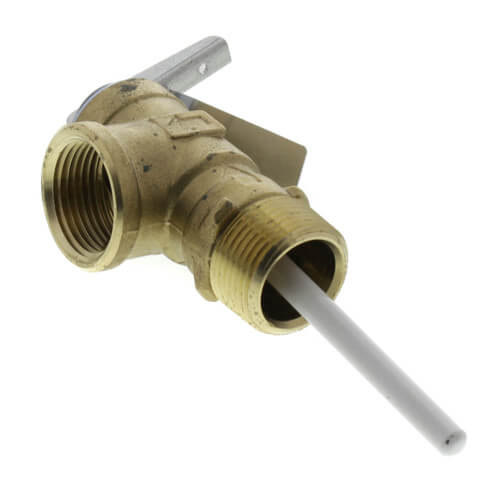

Model 10L Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 80,000 BTU/hr. It features a bronze body with NPT threaded male inlet and NPT threaded female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. Model 10L is ASME rated and CSA listed.
Read more
Manuals (1)
Specs
Application:
Heating
Material:
Bronze
Pressure Set Point:
150 psi
Size:
3/4"
Connection Type:
Threaded
Inlet Type:
MNPT
Outlet Type:
FNPT
Temperature Range (F):
210°F Max
Width:
1-3/4"
CSA Rating (BTU/HR):
80000
Weight:
10 oz
Thermostat Length:
2"
ASME:
Yes
Lead Free:
Yes
×
