Watts 100XL & 10L T&P Relief Valves

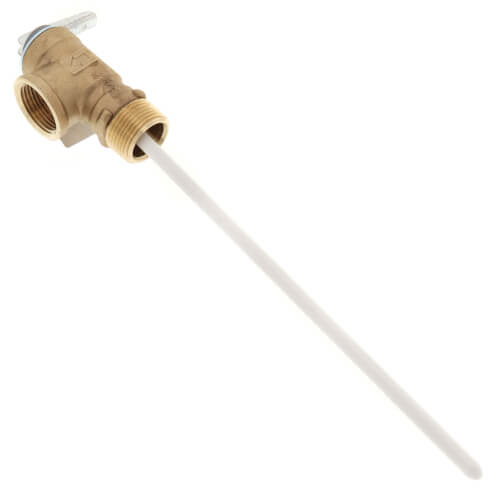

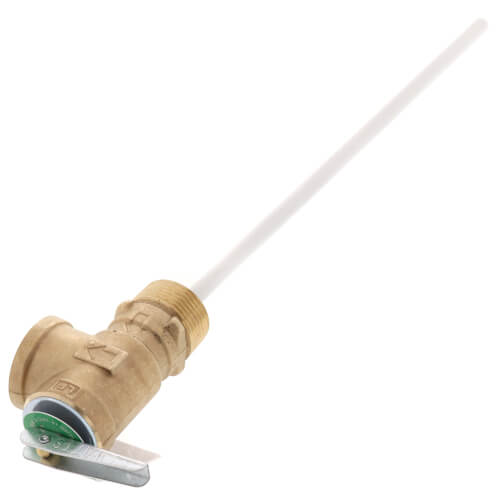

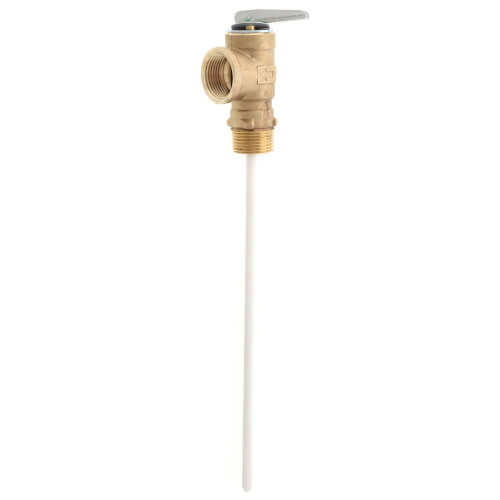

3/4" LF100XL-8, T & P Relief Valve, Lead Free - 125 psi
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$75.52 each
Out of Stock
Get it Tue, Jun 27 - Wed, Jul 5
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
MNPT
FNPT
125 psi
Bronze
Threaded Connection
Description
–
This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating with 8 inch extension, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 125 psi (8.6 bar).
- 8 inch thermostat with special thermo-bonded coating
- Protects against excessive temperature and pressure during emergency conditions
- Lead free copper alloy body construction
- ASME rated and CSA listed
Specs
–
| Application: | Heating |
|---|---|
| Material: | Bronze |
| Pressure Set Point: | 125 psi |
| Size: | 3/4" |
| Connection Type: | Threaded |
| Thread Type: | Male Female |
| Inlet Type: | MNPT |
| Outlet Type: | FNPT |
| Width: | 1-3/4" |
| Temperature Range (F): | 210°F Max |
| CSA Rating (BTU/HR): | 80000 |
| Weight: | 10 oz |
| Thermostat Length: | 2" |
| ASME: | Yes |
| Lead Free: | Yes |
