0123277 has been discontinued
Discontinued May 27, 2026
This product was discontinued by the manufacturer.
MANUALS (2)
Product Highlights
–
1"
FNPT x FNPT Connection
Lever
Yes
Full Port
150 MAX PSI
Description
–

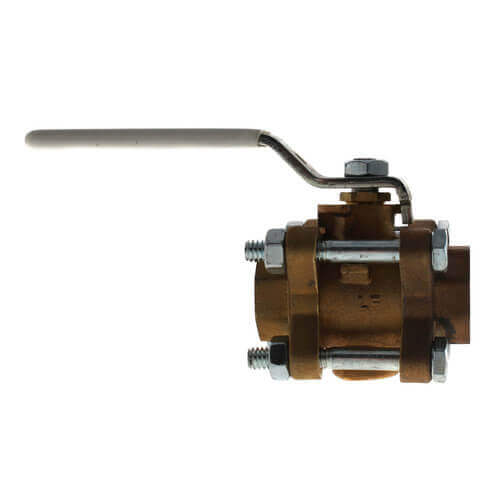

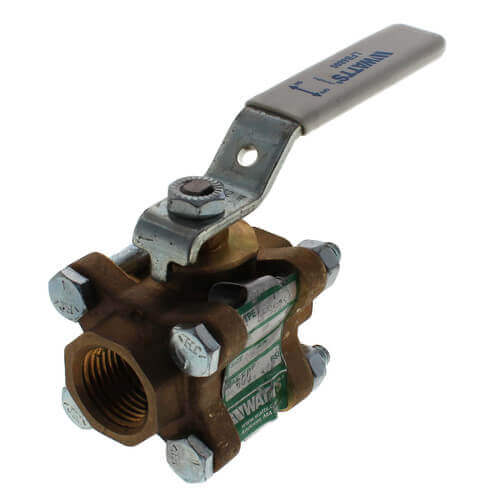

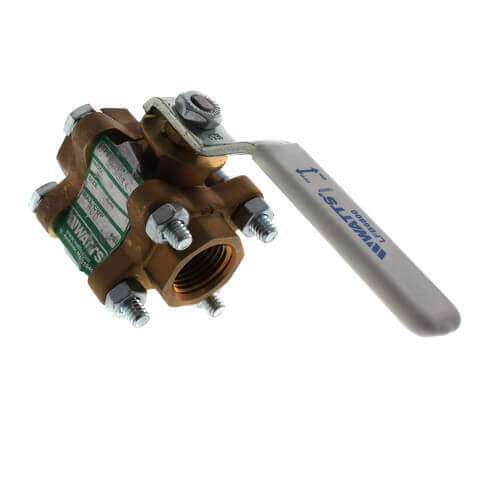

Series LFB6801 3-Piece, Full Port, Lead Free copper silicon alloy Ball Valves feature an in-line maintenance design that offers serviceability of all operating parts without disturbing the rigid pipeline system. The LFB6801 full port orifice ensures maximum flow capacity, while Durafill® seats, stainless steel ball and stem provide maximum safety and highest operating pressure and temperature limits. The LFB6801 features Lead Free* construction to comply with Lead Free* installation requirements.
Features
Features
- Lead Free* copper silicon alloy body
- 3-piece, lift-out design
- Carbon/glass reinforced PTFE Durafill® valve seats
- Stainless steel ball and stem
- Blow-out proof, pressure retaining stem
- Standard actuator mounting pads
- Vinyl insulator on heavy duty, zinc plated carbon steel handles
- Low operating torque
- Adjustable stem packing gland
- Each valve factory tested
Specs
–
| Size: | 1" |
|---|---|
| Max Pressure (PSI): | 150 |
| WOG: | 600 |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Valve Construction: | 3 piece |
| Handle Style: | Lever |
| Features: | Standard |
| Lead Free: | Yes |
| Port Type: | Full Port |
