Description

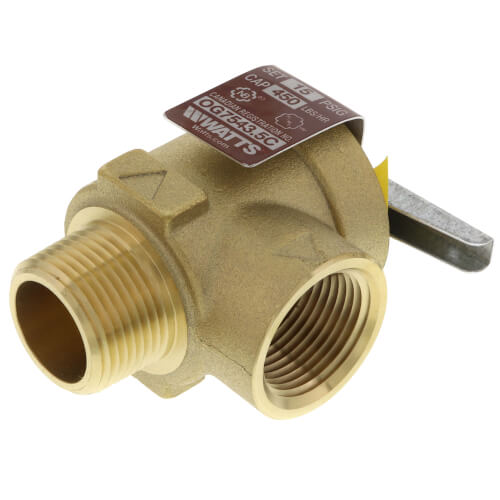

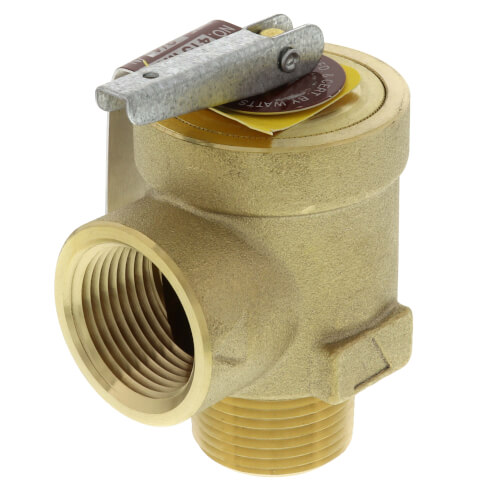

Series 415 ASME rated Steam Safety Relief Valves provide high quality dependable low cost protection for any low pressure steam heating equipment operating up to 15psi. Available at lower settings, such as 8psi for pressure cooker and steam cleaning equipment requirements. Consult your local Watts agent for ratings at lower pressure settings. Satin chrome finish also available, model SC. Series 415 steam safety valves feature a stainless steel spring, a top guided stem and non-stick Teflon ® disc to metal seating to assure positive shutoff.

Features
  • High capacity
  • Positive shut off
  • Non-sticking Teflon ® disc
  • Seat located above drain
  • NPT threaded male inlet x threaded female outlet (drain) connection
Hide Description
Manuals (1)
Specs
Size:

3/4"

Connection Type:

MPT x FPT

Inlet Type:

MNPT

Outlet Type:

FNPT

Pressure Set Point:

15 psi

Max Temp (F):

250°F

Material:

Brass

Standards Met:

ASME A112.18.1

×
