MANUALS (1)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/2"
Hydronic (Water)
240°F Max Temp
150 psi
33°F Min Temp
33°F - 240°F
Description
–

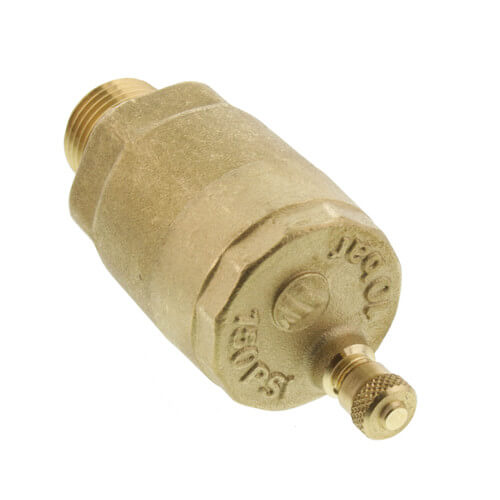

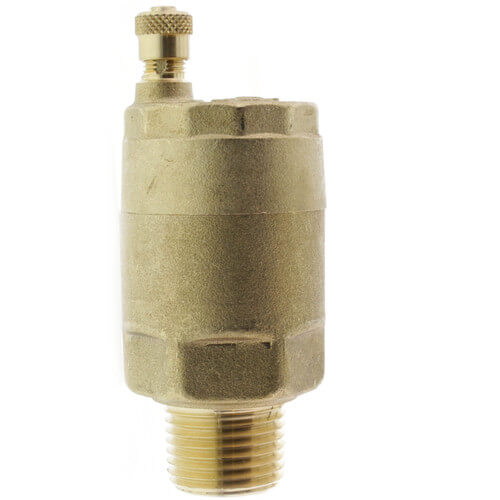

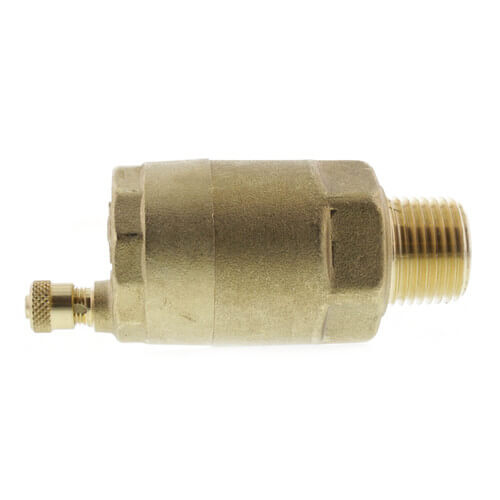

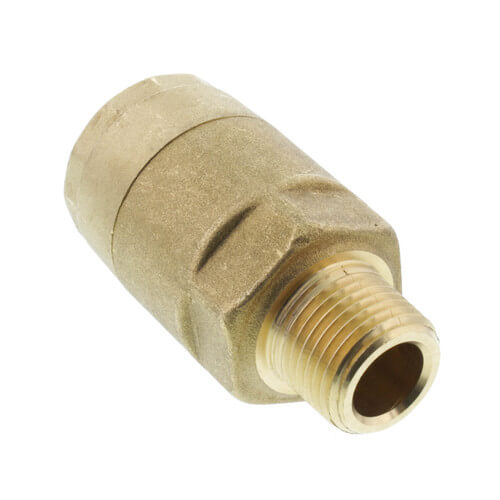

Series FV-4 Automatic Vent Valves are used in commercial and residential hydronic heating applications to provide automatic air venting for hot or cold water distribution systems. It consists of a brass body construction with male NPT connection, brass cover, air vent with silicone rubber seal, polyethylene float with valve plug, and automatic vent. Series FV-4M1 has a high temperature rating and is ideal for use with glycol systems or for use as an anti-vacuum device. It can also be installed to permit the separation and dispersal of air while fluid is circulating in the system. Can be disassembled for inspection and cleaning.
Features:
Features:
- Body and cover are brass construction
- Air vent with silicone rubber seal
- Impurities do not usually affect function as maximum float line of water is always lower than the valve seal
- Float is high temperature resistant polyethylene
- Suitable for use with glycol systems
- Can be disassembled for inspection and cleaning
- Minimum working pressure: 1.45psi (10 kPa)
- Maximum working pressure: 150psi (10 bar)
- Temperature Range: 33°F – 240°F (5°C – 116°C)
Specs
–
| Size: | 1/2" |
|---|---|
| System Type: | Hydronic (Water) |
| Min Temp (F): | 33°F |
| Max Temp (F): | 240°F |
| Temperature Range (F): | 33°F - 240°F |
| Max Pressure: | 150 psi |
| Min Pressure (PSI): | 1.45 |
| Material: | Brass |
| Body Pattern: | Straight |
| Mount: | Straight |
| Adjustability: | Non-Adjustable |
| Thread Type: | Male |
