$2,783.64 each
Backorder
MANUALS (1)
Lift Gate
–
This product weighs 254 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
8"
200, 125 MAX PSI
Flanged x Flanged Connection
Cast Iron
Description
–

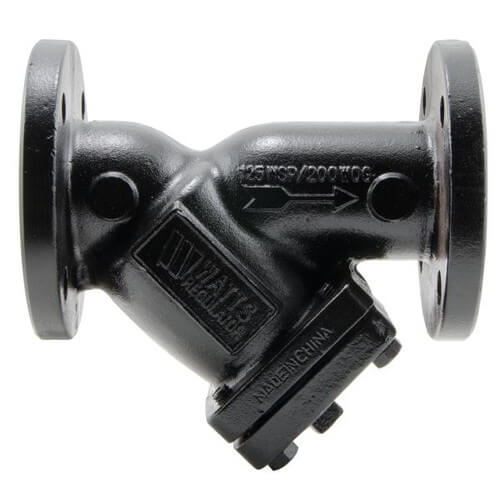

Series 77F-DI-125 Cast Iron, Flanged, Wye-Pattern Strainers feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, cast iron blow-down plug, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket and iron blow-down plug. Maximum Pressure (non-shock): 200psi (13.8 bar) @ 210°F (99°C) WOG, 125psi (8.6 bar) @ 353°F (178°C) WSP. 14 and 16 in. rated at 150psi (10.3 bar) @ 150°F; (66°C).
Specs
–
| Size: | 8" |
|---|---|
| Max Pressure (PSI): | 200 125 |
| Connection Type: | Flanged x Flanged |
| Connection Method: | Flanged |
| Material: | Cast Iron |
