$2,458.27 each
In Stock
Get 1 Fri, Jun 19 - Tue, Jun 23
MANUALS (1)
Lift Gate
–
This product weighs 147 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
6"
Flanged x Flanged Connection
Cast Iron
Description
–
77F-DI-FDA-125 2" to 12" (50 to 300mm) with flanged
connections and double coated, heat fused FDA approved
epoxy coating (interior and exterior) for water service only

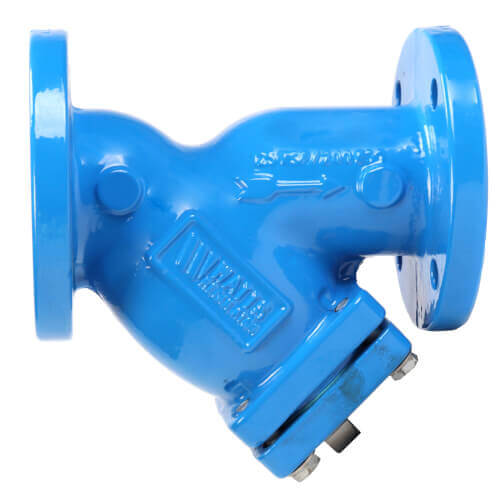

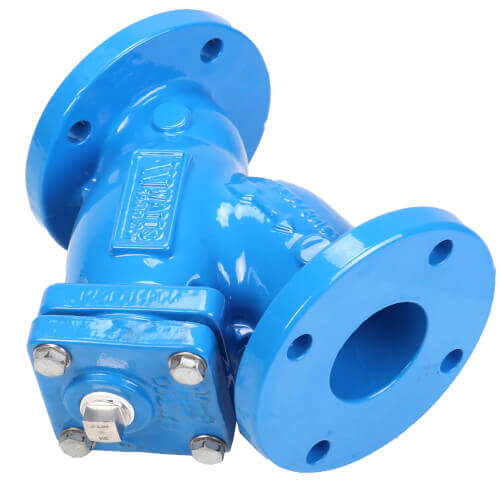

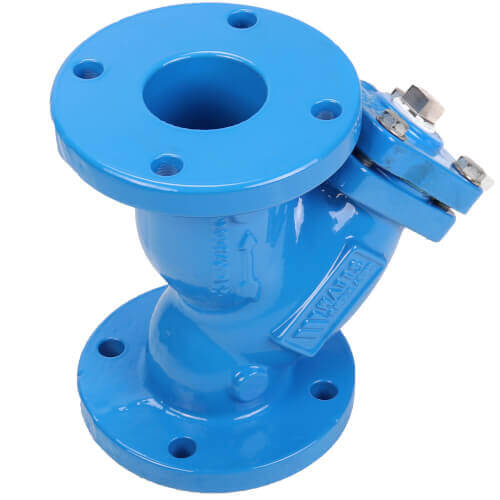

Series 77F-DI-FDA-125 Cast Iron, Flanged, Wye-Pattern Strainers feature an FDA approved epoxy coating inside and outside and is suitable for potable water and food contact applications. They feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket, and iron blow-down plug. Maximum Pressure (non-shock): 200psi (13.8 bar) @140°F (60°C) WOG.
FeaturesFlanges conform to American National Standards Institute,
Class 125 (ANSI B16.1) and WW-S-2739 Type 2
Cast iron body
304 Stainless steel perforated screens
Cast iron flanged retainer cap with gasket tapped
for closure plug
Drain/Blowoff connection furnished with closure plug
Series 77F-DI-FDA-125 comes with heat fused FDA
approved epoxy coating (interior and exterior)
Series 77F-DI-FDA-125 Cast Iron, Flanged, Wye-Pattern Strainers feature an FDA approved epoxy coating inside and outside and is suitable for potable water and food contact applications. They feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket, and iron blow-down plug. Maximum Pressure (non-shock): 200psi (13.8 bar) @140°F (60°C) WOG.
Features
Specs
–
| Size: | 6" |
|---|---|
| Connection Type: | Flanged x Flanged |
| Connection Method: | Flanged |
| Material: | Cast Iron |
